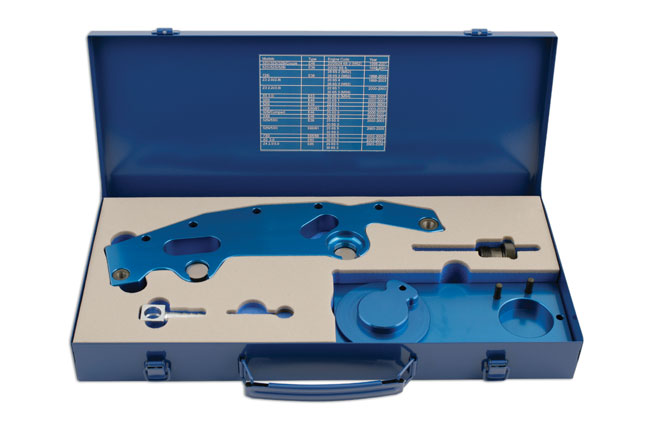

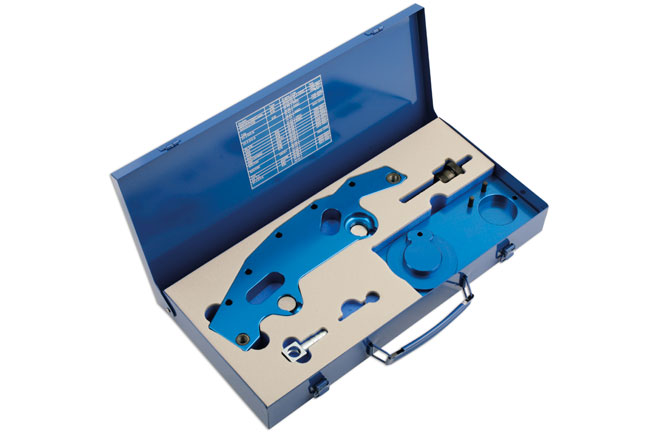

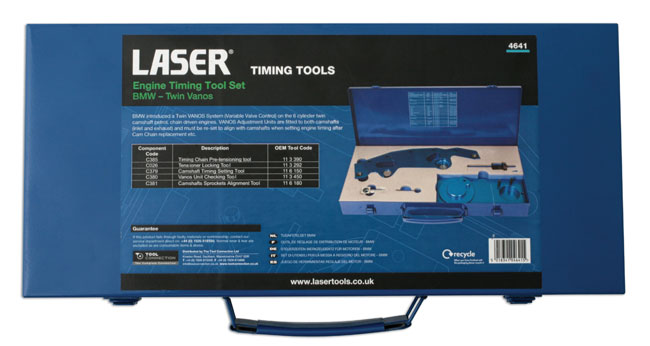

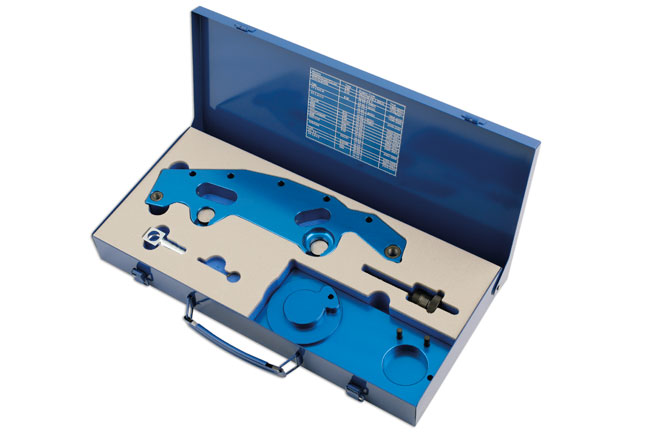

4641 Timing Tool Kit - for BMW M52, M54
Setting and locking set for BMW Vanos engines. Includes set-up bracket to time camshafts, 2 chain tensioner locking pins, secondary sprocket, Vanos checking and primary chain pre-tension tools.
- BMW applications: 3 Series (1998 - 2007), 5 Series (1998 - 2005), 7 Series (1998 - 2005), X3 (2003 - 2007), X5 (1999 - 2007), Z3 (1999 - 2003) and Z4 (2003 - 2006).
- Engine codes: M52 and M54.
- Vanos units are fitted to both inlet and exhaust camshafts and must be re-set to align with the camshafts when setting the engine timing after cam chain replacement.
- Kit includes set-up bracket to time camshafts; 2 chain tensioner locking pins, secondary sprocket, Vanos checking and primary chain pre-tension tools.
- Made in Sheffield.
List Price: £554.78 ex VAT £665.74 inc VAT
Blokady rozrządu do silników BMW Vanos. Zawiera wspornik do ustalania wałka rozrządu, 2 piny ustalające napinacz łańcucha, dodatkowe koło zębate, narzędzia do sprawdzenia i wstępnego naciągnięcia Vanos. Zastosowanie silniki: BMW 528i, X5, E46, Z3, Z4, 325, 525 z M52, M54 i M56.
- Zestaw ustalający i blokujący do silników Vanos w BMW.
- Zastosowanie: BMW 528i | X5 | E46| Z3 | Z4 | 325 | 525 with M52, M54 i M56.
- Zawiera wspornik do ustawania wałków rozrządu.
- Narzędzie do sprawdzenia i wstępnego napięcia łańcucha.
- Dwa napinacze łańcuchów, piny blokujące i dodatkowe narzędzia do kół zębatych.
List Price: £554.78 ex VAT £665.74 inc VAT
Applications
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| BMW | 3 Series | 320i, 323i, 325i, 325ti, 328i, 330i | (E46) | 1998 - 2007 |
2,0
20 6S 4 (M52 B20) 2,2 22 6S 1 (M54) 2,5 25 6S 4 (M52 B25) 25 6S 5 (M54 B25) 2,8 28 6S 2 (M52 B28) 3,0 30 6S 3 (M54 B30) |
| 5 Series | 520i, 523i, 525i, 528i, 530i | (E39) | 1998 - 2003 | ||
| 5 Series | 520i, 525i, 530i | (E60/61) | 2003 - 2005 | ||
| 7 Series | 728i | (E38) | 1998 - 2002 | ||
| 7 Series | 730i | (E65/66) | 2002 - 2005 | ||
| X3 | 2.5, 3.0 | (E83) | 2003 - 2007 | ||
| X5 | 3.0 | (E53) | 1999 - 2007 | ||
| Z3 | 2.0, 2.2, 2.8, 3.0 | (E36) | 1999 - 2003 | ||
| Z4 | 2.2, 2.5, 3.0 | (E85/86) | 2003 - 2006 | ||
Useful Downloads

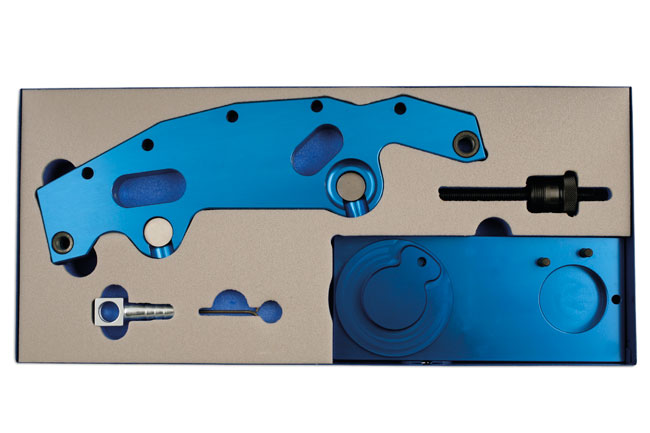

Set Contents
| Component | Description | OEM Toolcodes |
|---|---|---|
| C026 | Tensioner Locking Pins (2) |
11 3 292
12 114
2mm Drill Bit
KM 823
LRT 12 114
|
| C379 | Camshaft Timing Setting Tool |
11 6 150
|
| C380 | Vanos Unit Checking Tool |
11 3 450
|
| C381 | Camshaft Sprockets Alignment Tool |
11 6 180
|
| C385 | Timing Chain Pre-Tension Tool (Nut and Spindle) |
11 3 390
11 3 390/11 7 380
12 222
LRT 12 222
|
Press Release

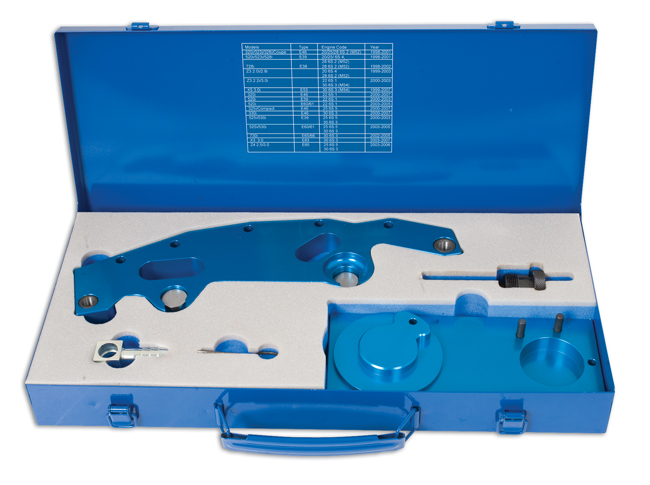

Twin VANOS on BMW M52, M54, M56
BMW have introduced a Twin VANOS system (Variable Valve Control) on the 6 cylinder twin camshaft petrol, chain driven engine. VANOS units are fitted to both inlet and exhaust camshafts and must be re-set to align with the camshafts when setting the engine timing after Cam chain replacement.
The essential set includes set-up bracket to time camshafts, 2 chain tensioner locking pins, secondary sprocket, VANOS checking and primary chain pre-tension tools. Laser's original timing kit for locking the twin camshafts is also required (Part No 3112)
Applications: BMW 528i, X5, E46, Z3, Z4, 325, 525 with M52, M54 and M56 engines. Prices will vary on this product, so check out your local Motor Factor via our website/stockists page.www.lasertools.co.uk
For further information on Laser Hand Tools please contact the marketing department on 01926 818196 or e-mail marketing@toolconnection.co.uk
