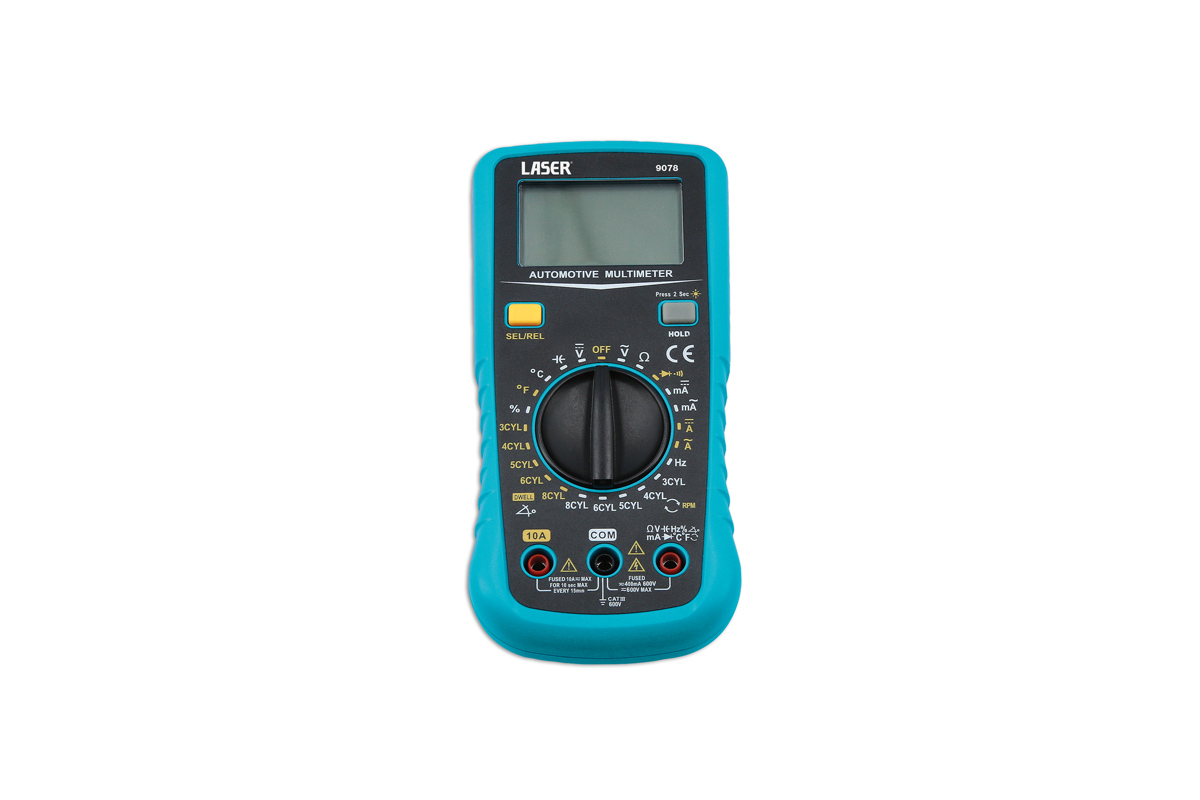

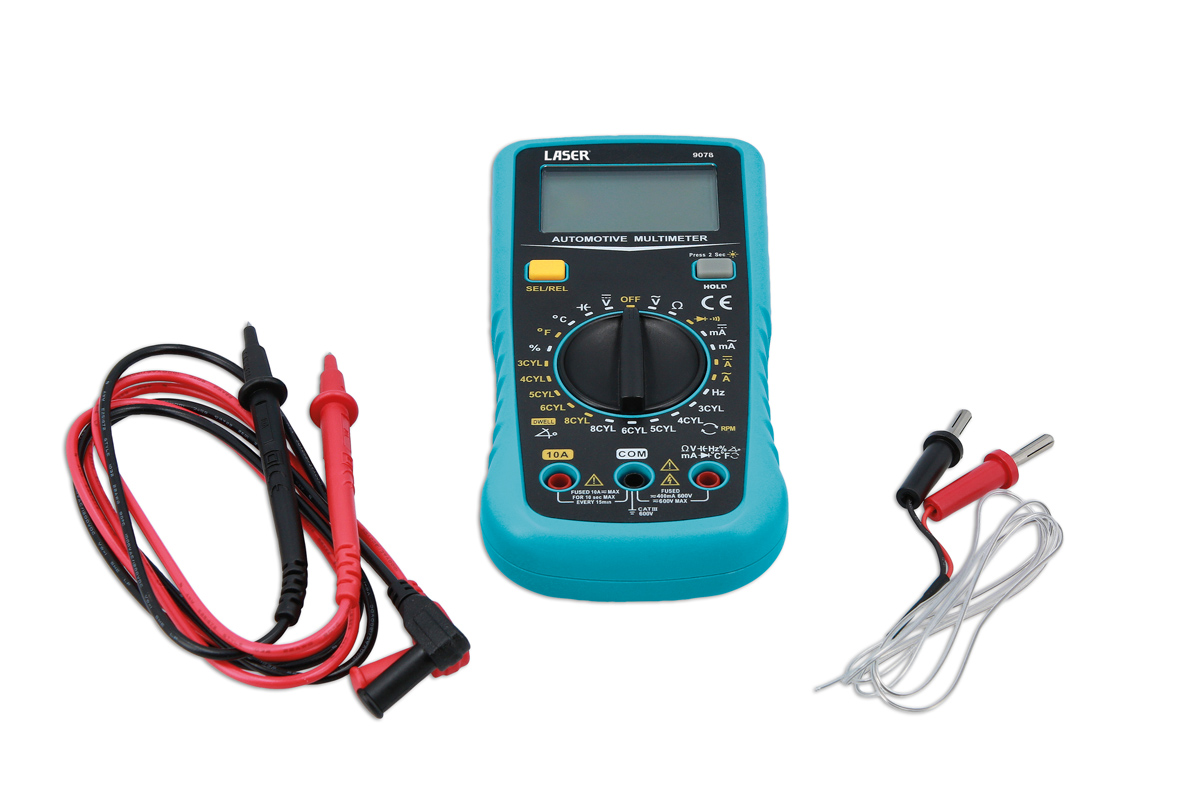

9078 Automotive Multimeter CAT III

CE Approved UK Conformity Assessed RoHS

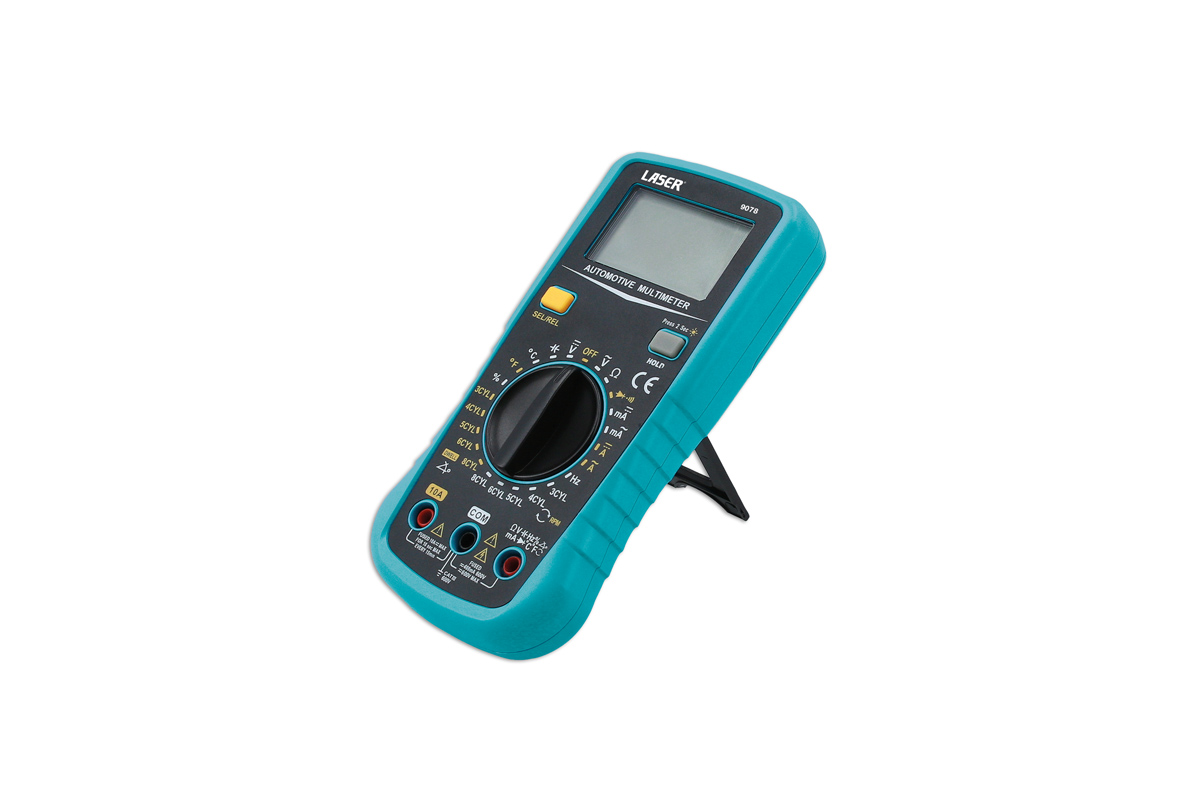

A CAT III multi-meter for measuring both DC and AC voltages, DC current, resistance, temperature, capacitance, frequency, duty angle, dwell angle, tacho RPM, diodes and continuity. It also features an easy to read digital display with backlight together with a data hold function, continuity buzzer and low battery indicator. Suitable for voltages up to 600V, it’s ideal for testing wiring and circuitry in the workshop and at home. This compact meter features an integral flip down stand for ease of use, and is supplied with a pair of test leads.

  • Features: Data hold function, diode test, continuity buzzer, low battery indicator, overload protection & backlight.
  • Size: 37 x 80 x 166mm. Weight: 192g (approx.).
  • DC voltage: Range; 400mV, 4V, 40V, 400V & 600V. AC voltage: Range; 4V, 40V, 400V & 600V. DC Current: 40mA, 400mA, 4A & 10A. AC Current: 40mA, 400mA, 4A & 10A. Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ 40MΩ.
  • Frequency: 4, 40, 400, 4k, 40k, 400kHz & 4.0mHz. Capacitance: 4nF4mF. Temperature: -20°C1000°C. Duty cycle: 0.598.5%. Dwell angle: 3, 4, 5, 6 & 8cyl. Tacho: 3, 4, 5, 6 & 8cyl/120-20,000RPM.

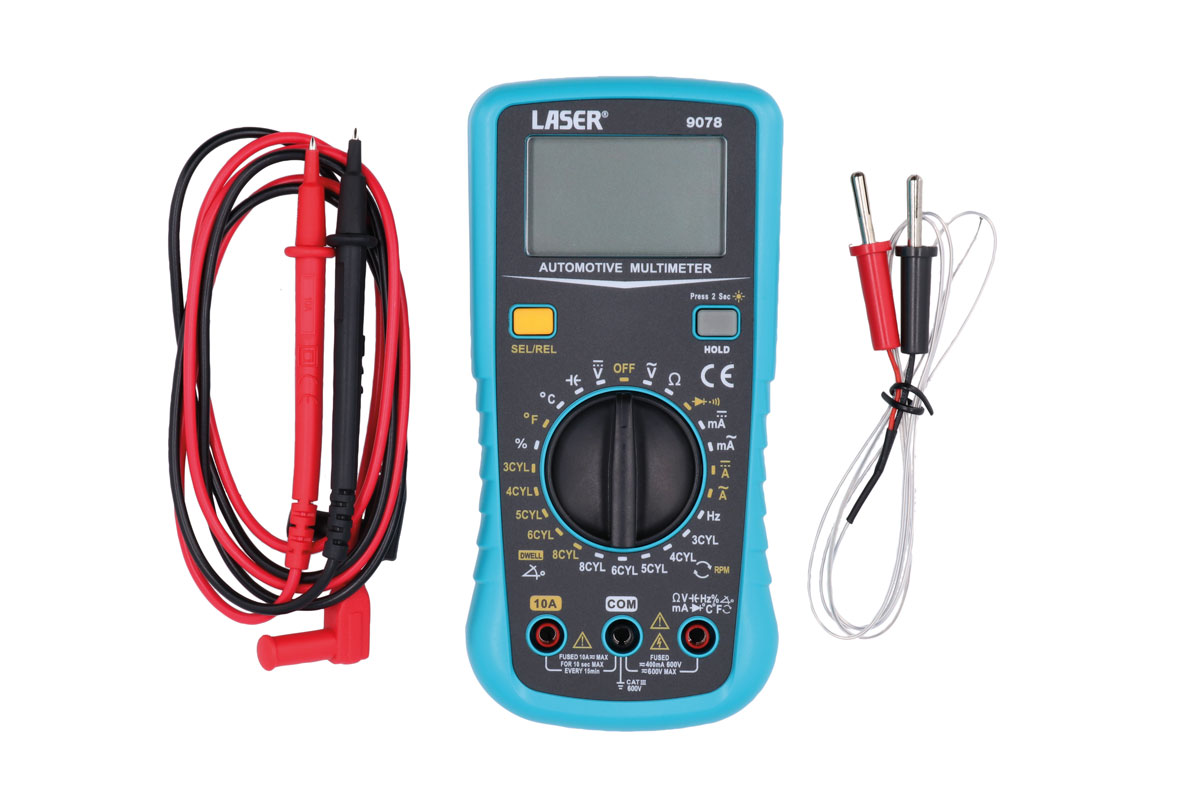

  • Supplied with test leads, manual & 9V battery. CE & UKCA compliant. CAT III.
TSP: £63.50 ex VAT £76.20 inc VAT

Kategorie-III-Multimeter zur Messung von Gleich- und Wechselspannungen, Gleichstrom, Widerstand, Temperatur, Kapazität, Frequenz, Arbeitswinkel, Schließwinkel, Drehzahl, Dioden und Durchgang. Mit leicht ablesbarer Digitalanzeige mit Hintergrundbeleuchtung sowie Datenhaltefunktion, Durchgangssummer und Anzeige für schwache Batterien. Ausgelegt für Spannungen bis zu 600 V, ideal für die Prüfung von Leitungen und Schaltkreisen in der Werkstatt und zu Hause. Dieses kompakte Messgerät verfügt über einen integrierten, umklappbaren Ständer für eine einfache Handhabung und wird mit einem Paar Messleitungen geliefert.

  • Merkmale: Datenhaltefunktion, Diodenprüfung, Durchgangssummer, Anzeige für schwache Batterien, Überlastungsschutz und Hintergrundbeleuchtung.
  • Größe: 37 x 80 x 166 mm. Gewicht: Ca. 192 g.
  • Gleichspannung: Bereiche: 400 mV, 4 V, 40 V, 400 V und 600 V. Wechselspannung: Bereiche: 4 V, 40 V, 400 V und 600 V. Gleichstrom: 40 mA, 400 mA, 4 A und 10 A. Wechselstrom: 40 mA, 400 mA, 4 A und 10 A. Widerstand: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ und 40 MΩ.
  • Frequenz: 4, 40, 400, 4000, 40.000, 400.000 kHz und 4,0 MHz. Kapazität: 4 nF 4 mF. Temperatur: -20 °C1000 °C. Tastverhältnis: 0,5 98,5 %. Schließwinkel: 3, 4, 5, 6 und 8 Zyl. Drehzahl: 3, 4, 5, 6 und 8 Zyl./120-20.000 U/min.
  • Lieferumfang: Messleitungen, Handbuch und 9-V-Batterie. Erfüllt CE- und UKCA-Bestimmungen. Kategorie III.
TSP: £63.50 ex VAT £76.20 inc VAT

Multimètre CAT III permettant de mesurer les tensions continues et alternatives, le courant continu, la résistance, la température, la capacité, la fréquence, l'angle de travail, l'angle de came, le régime tachymétrique, les diodes et la continuité. Il est également doté d'un écran numérique facile à lire avec rétroéclairage, d'une fonction de maintien des données, d'un avertisseur sonore de continuité et d'un indicateur de batterie faible. Adapté à des tensions allant jusqu'à 600 V, c'est un outil idéal pour tester le câblage et les circuits en atelier et chez soi. Ce multimètre de taille compacte est doté d'un support rabattable intégré pour faciliter son utilisation et est fourni avec une paire de fils de test.

  • Caractéristiques : Fonction de maintien des données, test de diodes, avertisseur sonore de continuité, indicateur de batterie faible, protection contre les surcharges et rétroéclairage.
  • Dimensions : 37 x 80 x 166 mm. Poids : 192 g (environ).
  • Tension CC : Plage ; 400 mV, 4 V, 40 V, 400 V et 600 V. Tension CA : Plage ; 4 V, 40 V, 400 V et 600 V. Intensité CC : 40 mA, 400 mA, 4 A et 10 A. Intensité CA : 40 mA, 400 mA, 4 A et 10 A. Résistance : 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ.
  • Fréquence : 4, 40, 400, 4 k, 40 k, 400 kHz et 4,0 mHz. Capacité : 4 nF4 mF. Température : -20°C1000°C. Cycle de service : 0,598,5 %. Angle de came : 3, 4, 5, 6 et 8 cyl. Tachymètre : 3, 4, 5, 6 et 8 cyl/120-20 000 tr/min.
  • Fourni avec fils de test, manuel et batterie 9 V. Conformité CE et UKCA. CAT III.
TSP: £63.50 ex VAT £76.20 inc VAT

Multimeter voor motorvoertuigen CAT III

  • Deze CAT III-multimeter meet zowel DC- als AC-spanningen, DC-stroom, weerstand, temperatuur, capaciteit, frequentie, werkhoek, contacthoek, toerental, diodes en continuïteit. Bovendien beschikt hij over een gemakkelijk af te lezen digitaal display met achtergrondverlichting, een gegevensopslagfunctie, een continuïteitszoemer en een batterij-indicator. Hij is geschikt voor spanningen tot 600 V en leent zich dus perfect om bedrading en circuits te testen in de werkplaats en thuis. Zijn geïntegreerde inklapbare standaard verhoogt het gebruiksgemak, en hij wordt geleverd in een beschermende draagtas.
  • Functies: Functie voor gegevensopslag, diodetest, continuïteitszoemer, batterij-indicator, overbelastingsbeveiliging & achtergrondverlichting.
  • Maat: 37 x 80 x 166 mm. Gewicht: 192 g (ongeveer).
  • Gelijkspanning: Bereik; 400 mV, 4 V, 40 V, 400 V & 600 V. Wisselspanning: Bereik; 4 V, 40 V, 400 V & 600 V. Gelijkstroom: 40 mA, 400 mA, 4A & 10A. Wisselstroom: 40 mA, 400 mA, 4A & 10A. Weerstand: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ.
  • Frequentie: 4, 40, 400, 4 k, 40 k, 400 kHz & 4,0 mHz. Capaciteit: 4nF4mF. Temperatuur: -20°C1000°C. Inschakelduur: 0,598,5%. Contacthoek: 3, 4, 5, 6 & 8 cilinders Toerental: 3, 4, 5, 6 & 8 cilinders / 120-20.000 tpm.
TSP: £63.50 ex VAT £76.20 inc VAT
CE Approved UK Conformity Assessed RoHS
 Buy Locally

Useful Downloads


Press Release
New Automotive Multimeter from Laser Tools – accurate testing for workshop & home

The Laser Tools Automotive Multimeter (part number 9078), is a versatile, high-precision diagnostic tool designed for automotive and electrical testing in both professional workshops and home environments. With a wide range of measurement functions, including DC/AC voltage and current, resistance, capacitance, frequency, duty cycle, dwell angle, tacho RPM, temperature measurement, diode testing, and continuity, this compact multimeter is an essential tool for any technician or DIY enthusiast.

The user-friendly design features an easy-to-read digital display with backlight, data-hold function for convenient reference, continuity buzzer and a low-battery indicator to prevent unexpected power loss. The integral stand flips down for hands-free use.

✅ Comprehensive measurement capabilities:
DC voltage: 400mV – 600V
AC voltage: 4V – 600V
DC/AC current: 40mA – 10A
Resistance: 400Ω – 40MΩ
Frequency: 4Hz – 4.0MHz
Capacitance: 4nF – 4mF
Temperature range: -20°C to 1000°C
Duty Cycle: 0.5% – 98.5%
Dwell Angle & Tacho RPM: For 3, 4, 5, 6 and 8-cylinder engines (120-20,000RPM)

✅ Built for safety and reliability:
Overload protection for added durability
CAT III-rated for safety in environments up to 600V
CE & UKCA compliant

Supplied ready to use with test leads, detailed instruction manual, and a 9V battery, the Laser Tools 9078 multimeter is a must-have for automotive technicians, electricians, and hobbyists. Available now for purchase from your Laser Tools stockist and online retailers.
