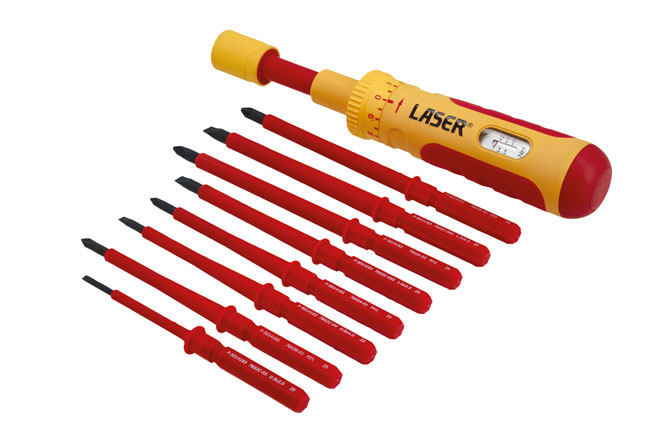

9167 VDE Insulated Torque Screwdriver Set 1-6Nm 9pc

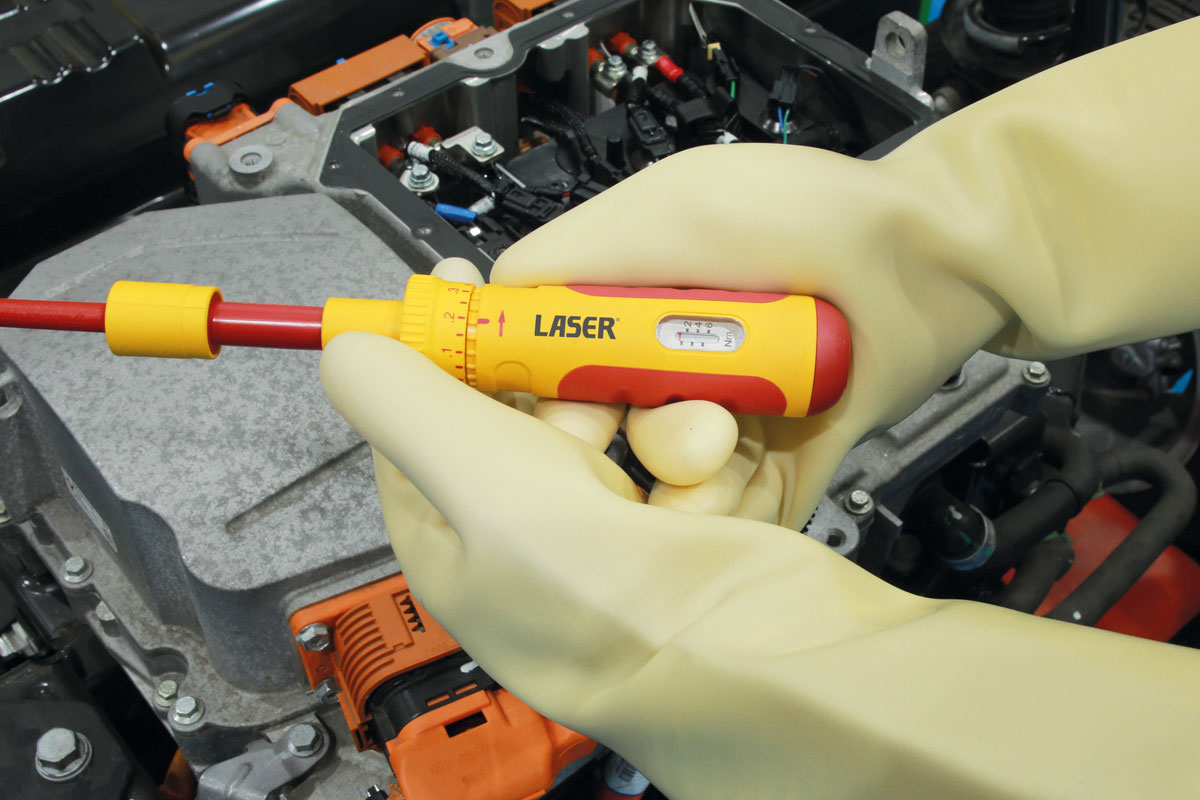

A slipper style torque screwdriver, fully insulated to IEC60900 standards for 1000V AC/1500V DC live working, and ideal for use on hybrid and electric vehicle low torque electrical connections etc. It features an easy to read scale. The range of 1-6Nm is adjusted by a pull-down collar at the base of the handle in 0.1Nm increments.
- Range: 1 - 6Nm in 0.1Nm increments. Tolerance as per standards at ±6%.

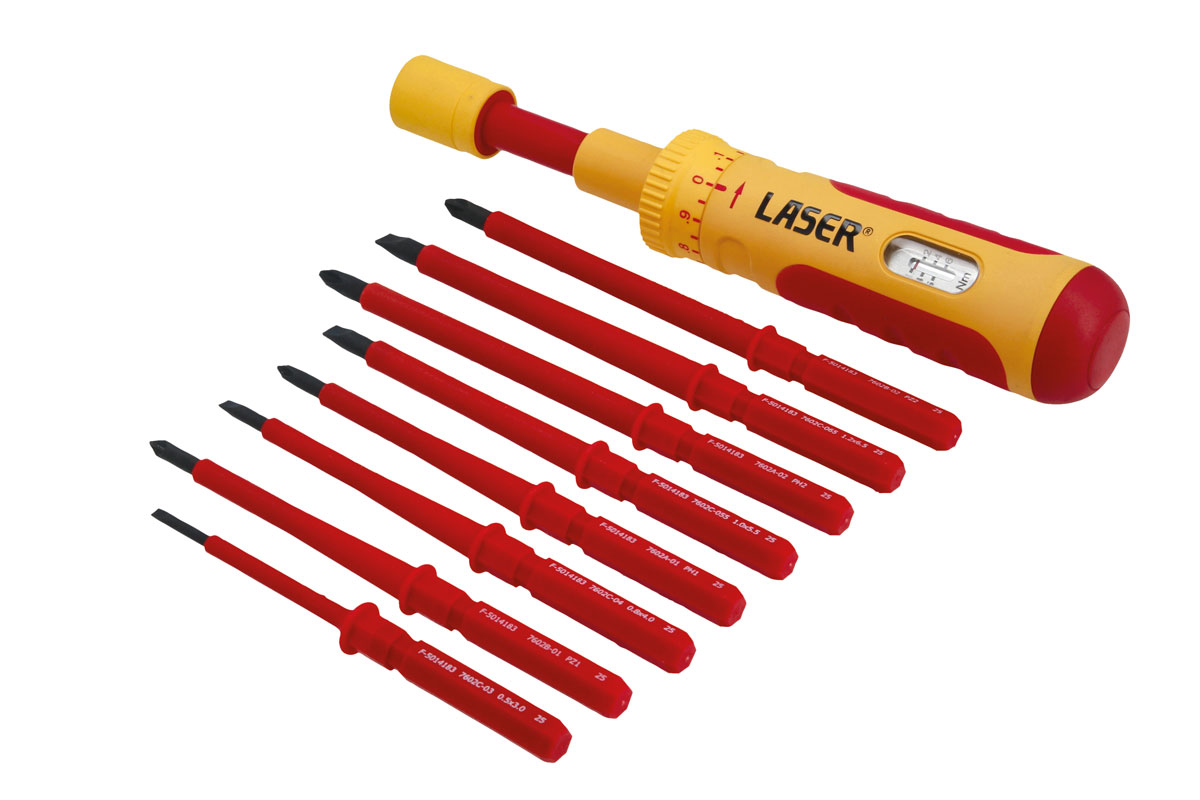

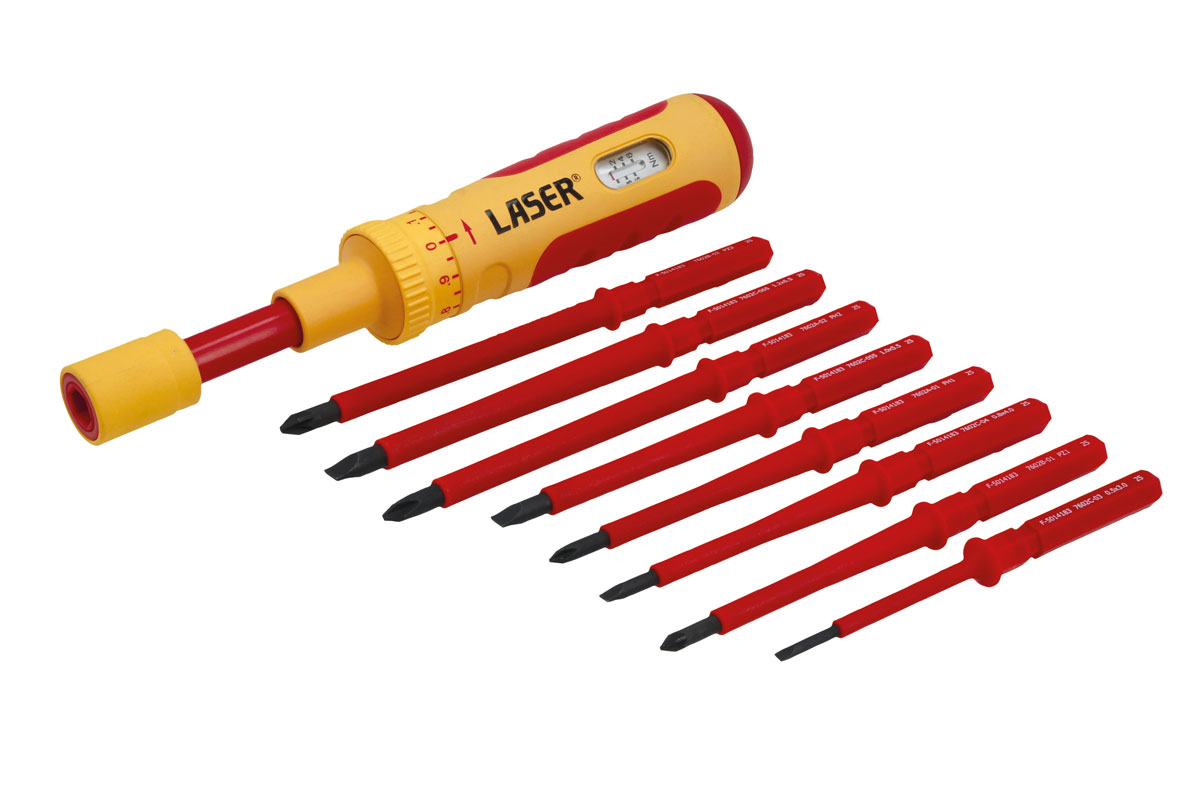

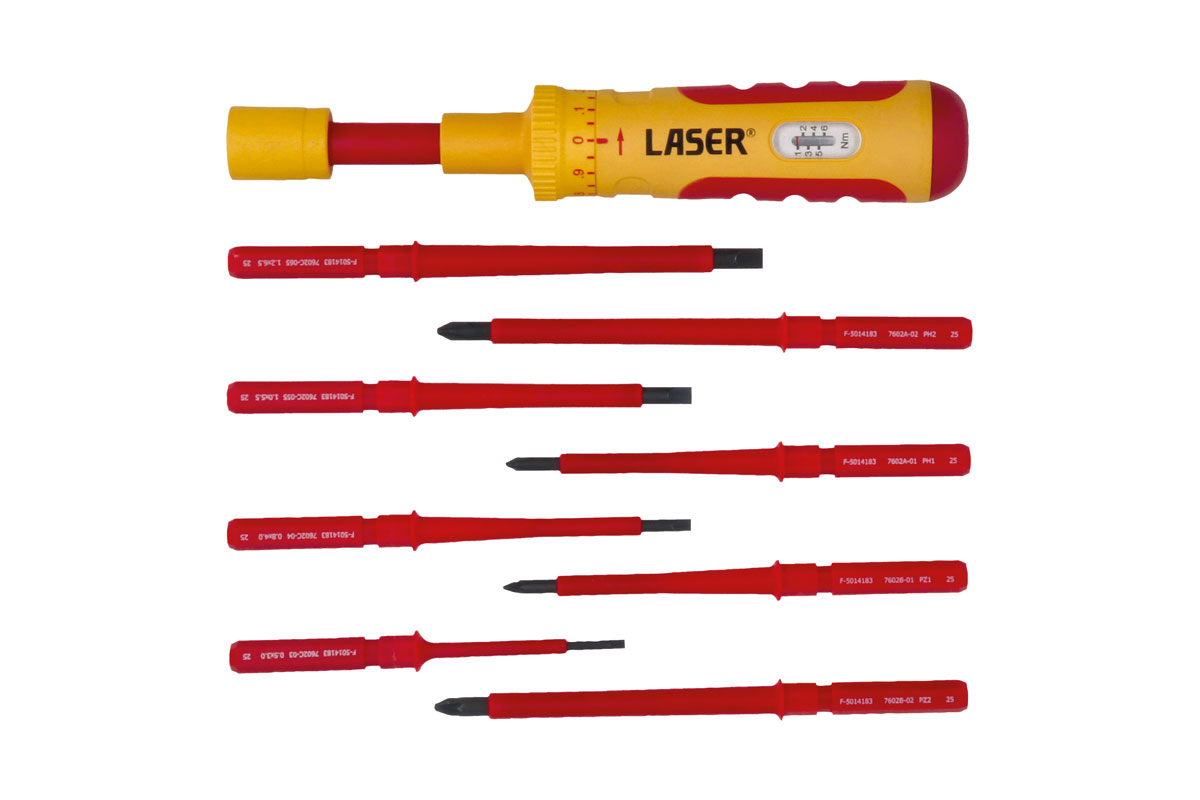

- Fully insulated fast change interchangeable adaptors: 4x Slotted (3.0, 4.0, 5.5 & 6.5mm), 1x Ph1, 1x Ph2, 1x Pz1, 1x Pz2.
- Easy read & set adjustment. Handle length 212mm.
- Manufactured to IEC60900 standards, for safe operator use on live voltages up to 1000V AC / 1500V DC. VDE certified.

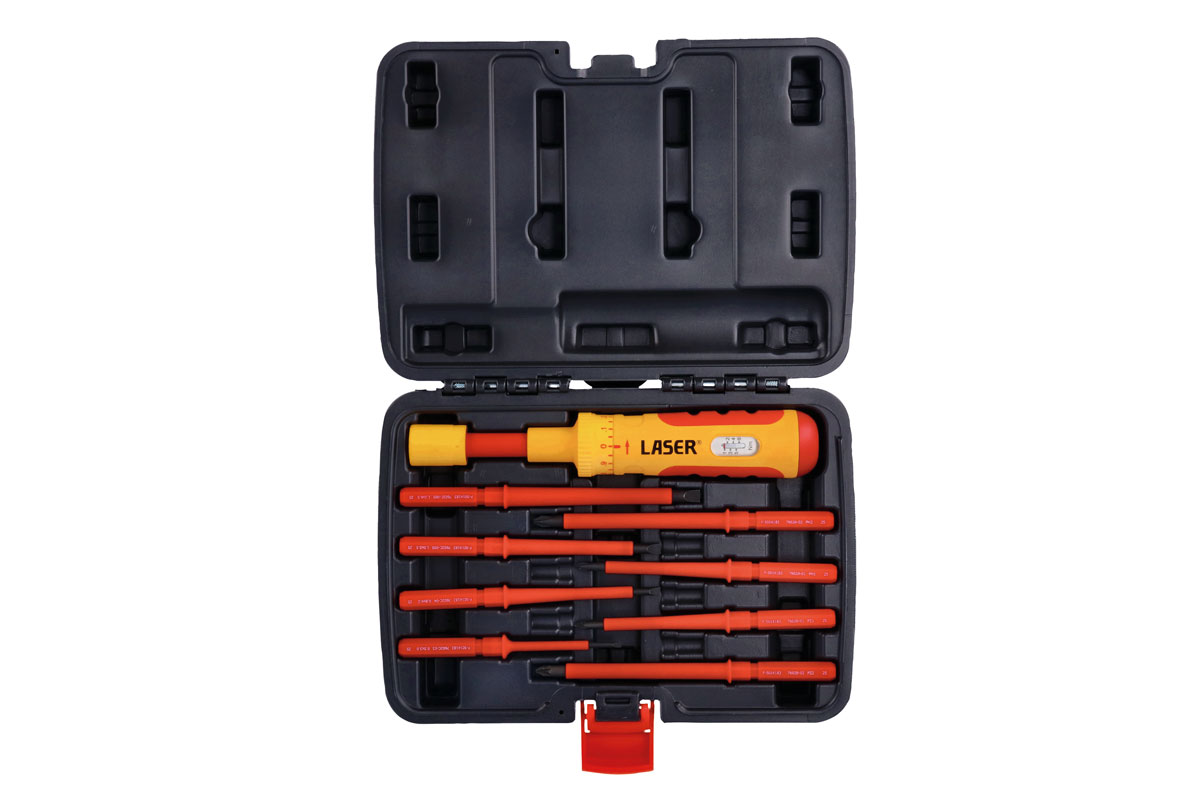

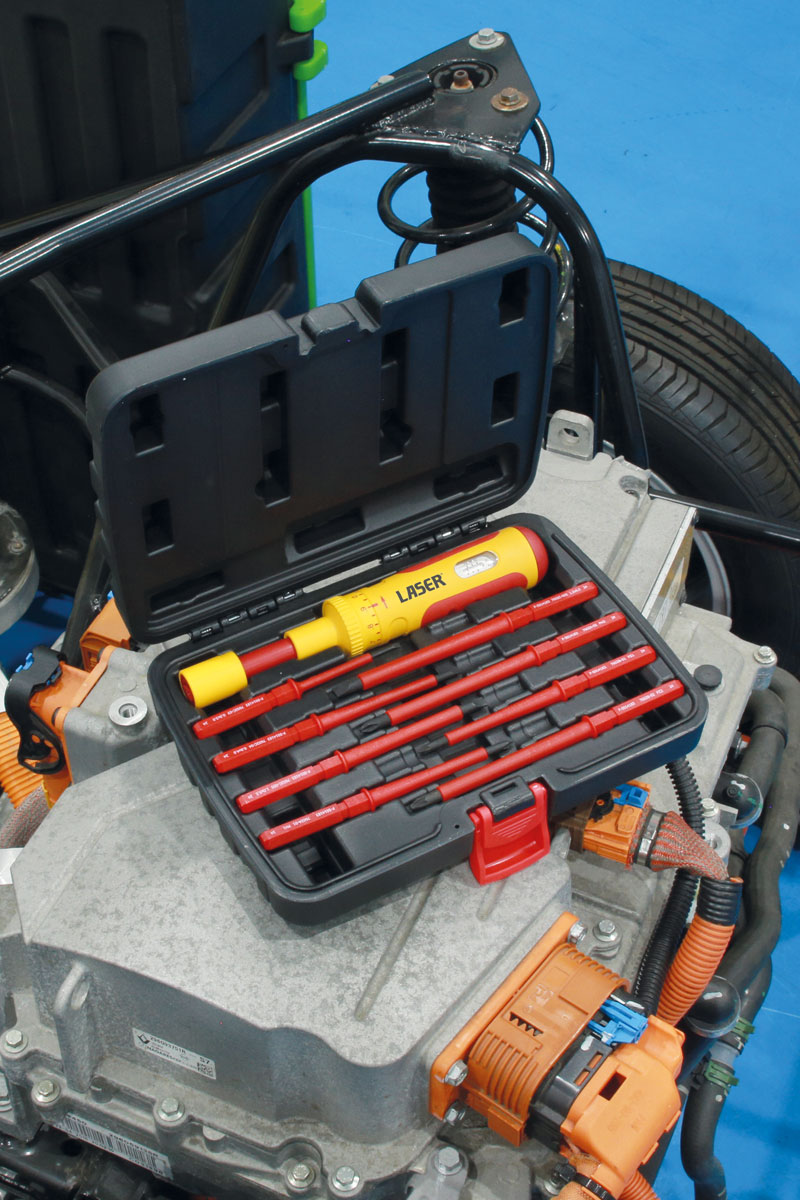

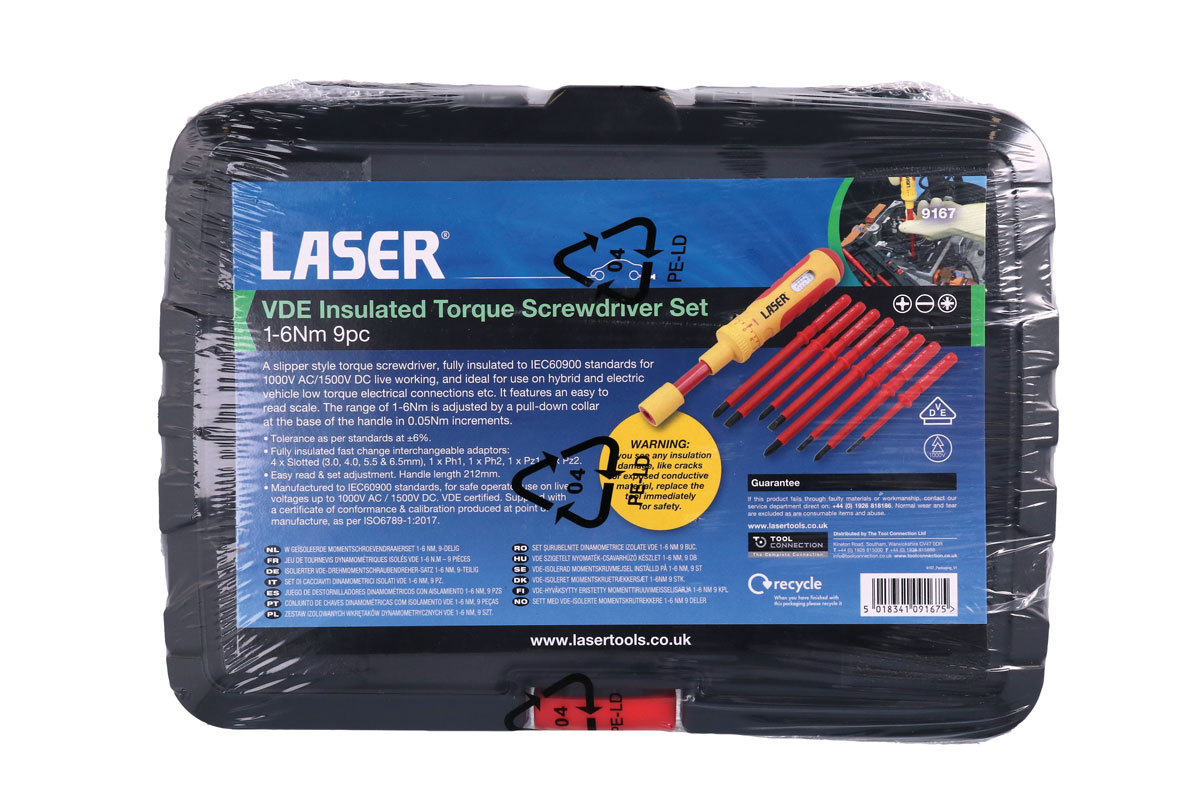

- Supplied in a blow mould case for storage. All Laser torque wrenches (mechanical & digital) are supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017.
List Price: £246.00 ex VAT £295.20 inc VAT
Slipper-Drehmomentschraubendreher, voll isoliert nach IEC60900 für 1000 VAC/1500 VDC unter Spannung, ideal für den Einsatz an elektrischen Verbindungen mit geringem Drehmoment in Hybrid- und Elektrofahrzeugen usw. Mit leicht ablesbarer Skalierung. Der Bereich von 1-6 Nm ist über einen ausziehbaren Ring unten am Griff in Schritten von 0,1 Nm einstellbar.
- Einstellbereich: 1-6 Nm in 0,1-Nm-Schritten. Die Toleranz beträgt gemäß den Normen ±6 %.
- Vollständig isolierte, schnell austauschbare Adapter: 4 x Schlitz (3,0, 4,0, 5,5 und 6,5 mm), 1 x Ph1, 1x Ph2, 1x Pz1, 1x Pz2.
- Leicht ables- und einstellbar. Grifflänge 212 mm.
- Hergestellt nach IEC60900-Normen, für den sicheren Einsatz unter Spannung bis 1000 VAC / 1500 VDC. VDE-zertifiziert.
- Lieferung in einem Hartschalenkoffer zur Aufbewahrung. Alle Laser-Drehmomentschlüssel (mechanisch und digital) werden mit am Herstellungsort ausgestellter Konformitäts- und Kalibrierungsbescheinigung nach ISO6789-1:2017 geliefert.
List Price: £246.00 ex VAT £295.20 inc VAT
Tournevis dynamométrique à glissement, entièrement isolé selon les normes CEI 60900 pour les travaux sous tension de 1 000 V CA/1 500 V CC, idéal pour les connexions électriques à faible couple des véhicules hybrides et électriques, etc. Échelle à lecture facile. La plage de 1-6 N.m se règle par incréments de 0,1 N.m à l'aide d'une bague située à la base de la poignée.
- Plage : 1 - 6 N.m par incréments de 0,1 N.m. Tolérance selon les normes à ±6 %.
- Adaptateurs interchangeables à changement rapide entièrement isolés : 4 fendus (3,0, 4,0, 5,5 et 6,5 mm), 1 Ph1, 1 Ph2, 1 Pz1, 1 Pz2.
- Lecture et réglage faciles. Longueur de poignée : 212 mm.
- Fabriqué selon les normes CEI 60900, pour une utilisation en toute sécurité sur des circuits sous tension jusqu'à 1 000 V CA / 1 500 V CC. Certifié VDE.
- Fourni dans un coffret de rangement moulé par soufflage. Toutes les clés dynamométriques Laser (mécaniques et numériques) sont fournies avec un certificat de conformité et d'étalonnage produit au point de fabrication, conformément à la norme ISO 6789-1:2017.
List Price: £246.00 ex VAT £295.20 inc VAT
Useful Downloads
Related Products
Press Release
Laser Tools new VDE Insulated Torque Screwdriver Set — safe live working and accurate torque for EV & hybrid components
As electrified vehicles become routine in every automotive workshop, two things matter more than ever: safe live working on high-voltage systems, and applying the correct torque to low-torque electrical fastenings. The new Laser Tools VDE Insulated Torque Screwdriver Set (part number 9167), has been built around those exact priorities — offering VDE-rated insulation for live work and a fine, repeatable torque range suitable for delicate EV/hybrid connectors.
This slipper-style torque screwdriver avoids over-tightening by releasing (slipping) at the set torque, protecting fragile terminals, conductor crimps and plastic housings. It’s fully insulated to IEC 60900 and certified VDE for safe use on live circuits up to 1000V AC / 1500V DC, making it ideal for on-vehicle electrical work where safety and precision are non-negotiable. Eight fully-insulated fast-change interchangeable adaptors are included in the set: 4x slotted (3.0, 4.0, 5.5 and 6.5mm), 1x Ph1, 1x Ph2, 1x Pz1 and 1x Pz2.
Why this matters:
- Safety first: many EV/hybrid systems operate at voltages far above the 60 V “high-risk” threshold. Fully insulated hand tools are essential to reduce the risk of shock when working near live components.
- Correct torque prevents failures: electrical connectors rely on the right clamping force for consistent contact resistance. Over-torque can crack insulation, strip threads or damage terminals; under-torque can cause poor contact, heating and eventual failure. The 9167 prevents both outcomes.
- Traceable accuracy: workshop owners and fleet operators increasingly expect tools that are certified and calibrated. Laser supplies the 9167 with factory calibration and a certificate of conformance to ISO 6789-1:2017 — a reassurance for audit and quality systems.
- Torque range: 1.0–6.0 Nm, settable in 0.1 Nm increments via a pull-down collar, with an accuracy / tolerance: ±6% as per standards — reliable for torque-sensitive electrical fixings.
- Slipper action: positive release at set torque avoids over-tightening and damage to connectors.
Typical applications:

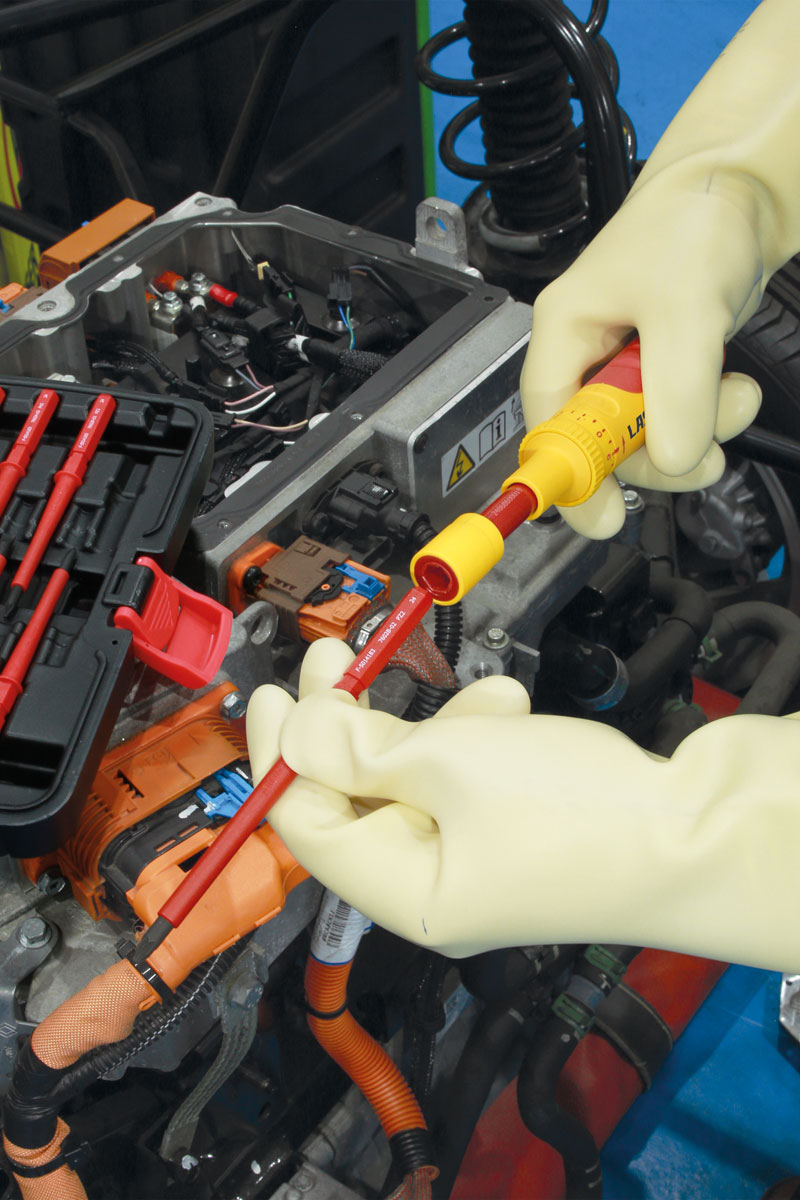

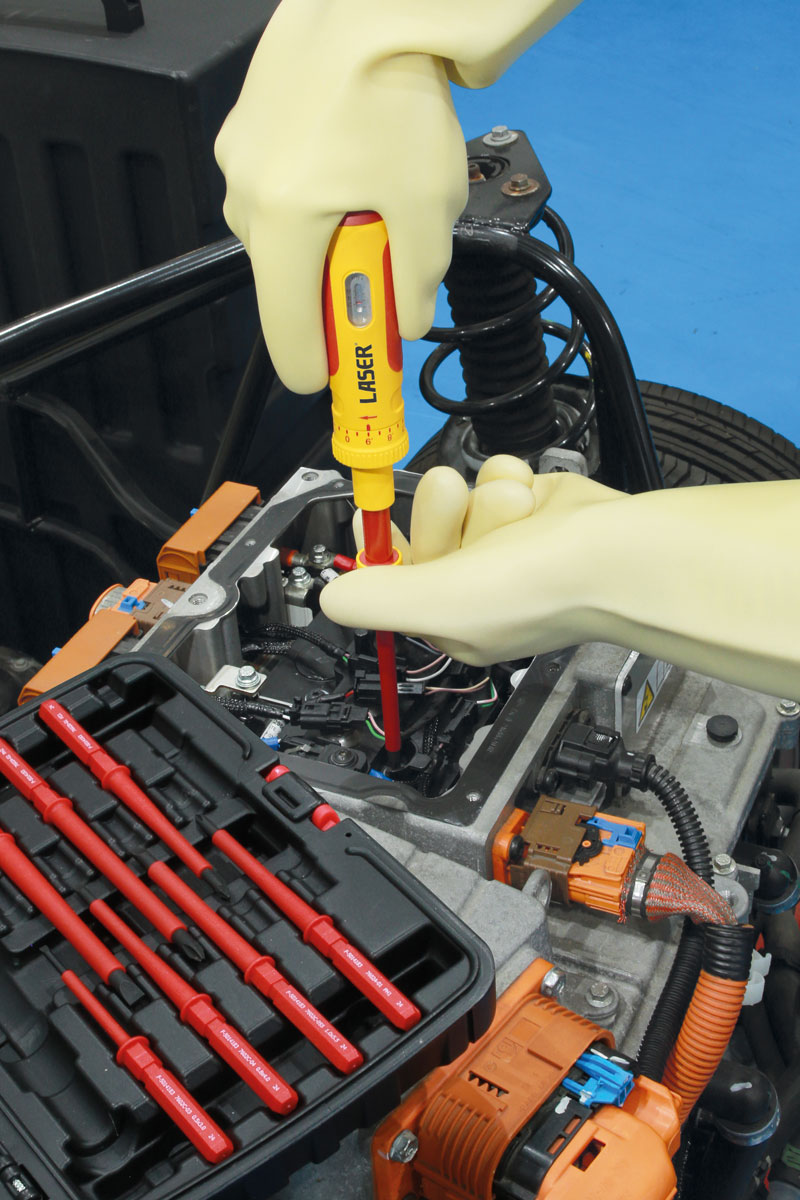

- EV/Hybrid low-torque electrical connections (battery pack service covers, control module connectors, sensor & signal plugs).
- Interior and bodywork electrical connectors where plastic housings and small threads are at risk.
- Any live or potentially live electrical work requiring both insulation protection and torque control (follow OEM procedures).
Safety and usage notes:
- Always follow vehicle manufacturer instructions and safety procedures when working on high-voltage systems. Use full PPE and isolate circuits where required.
- The 9167 is VDE/IEC insulated for live work — but live working should only be carried out by trained personnel and only when necessary.
- Keep the tool calibrated per your workshop schedule to maintain accuracy and traceability.
The Laser 9167 VDE Insulated Torque Screwdriver Set is available now through Laser Tools distributors and online retailers. For workshops upgrading to EV service capability, it’s a compact, certified solution that addresses both safety and torque control in one hand tool.
