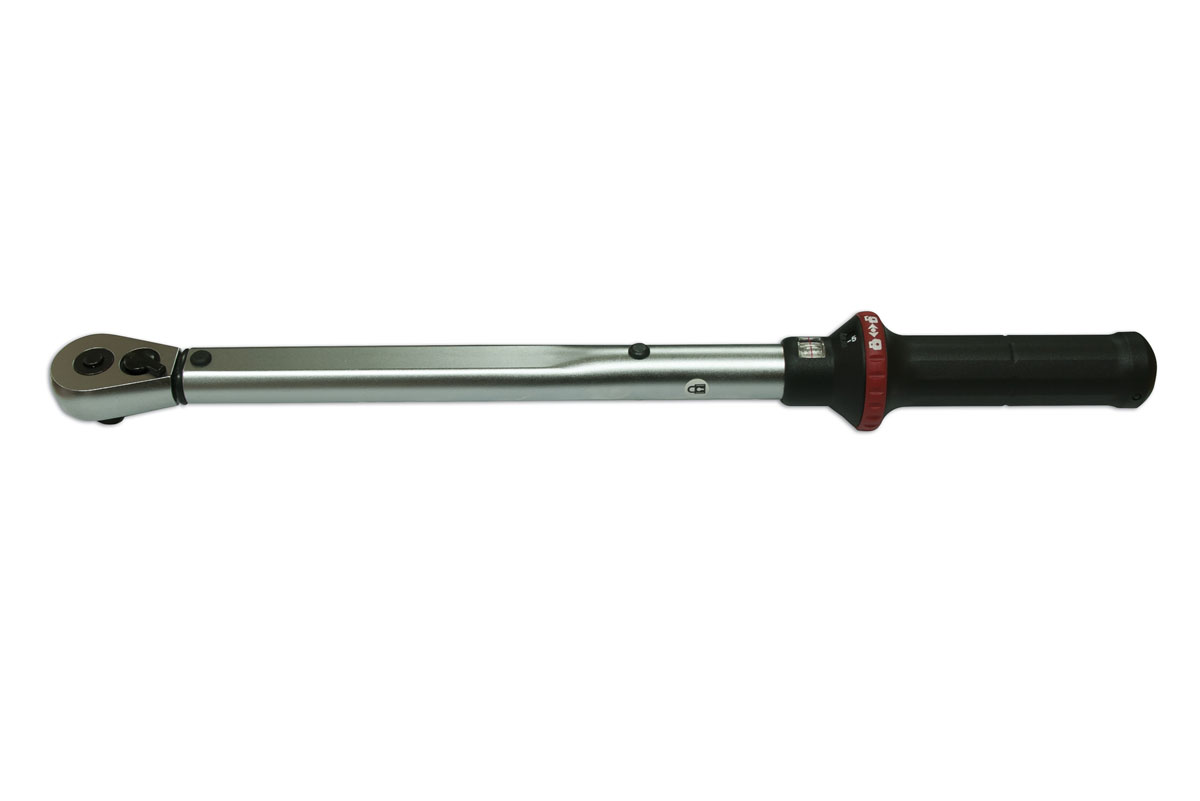

7171 Torque Wrench 3/4"D 150 - 750Nm

3/4" Drive Calibration Certificate

Dual scale torque wrench, with ratchet function for quick clockwise torque operation. Featuring a magnified window for the torque setting, with an additional micro-adjustment window, this torque wrench is easily adjusted using the locking button in the handle end.

  • Range: 150 - 750Nm (110 - 553lb-ft).
  • 45 teeth ratchet mechanism; 3/4"D x 1150mm long.
  • An audible signal when the desired torque value is achieved.
  • Accuracy: ±3% tolerance from the set scale value.

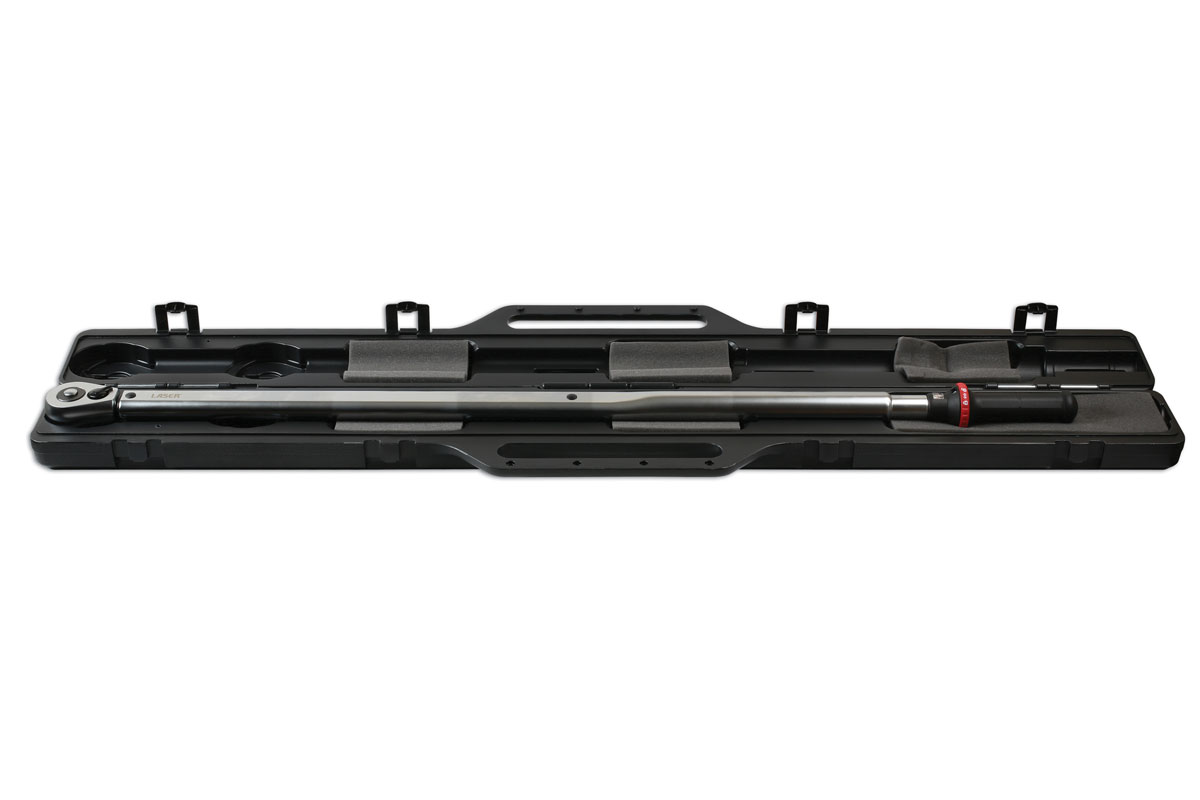

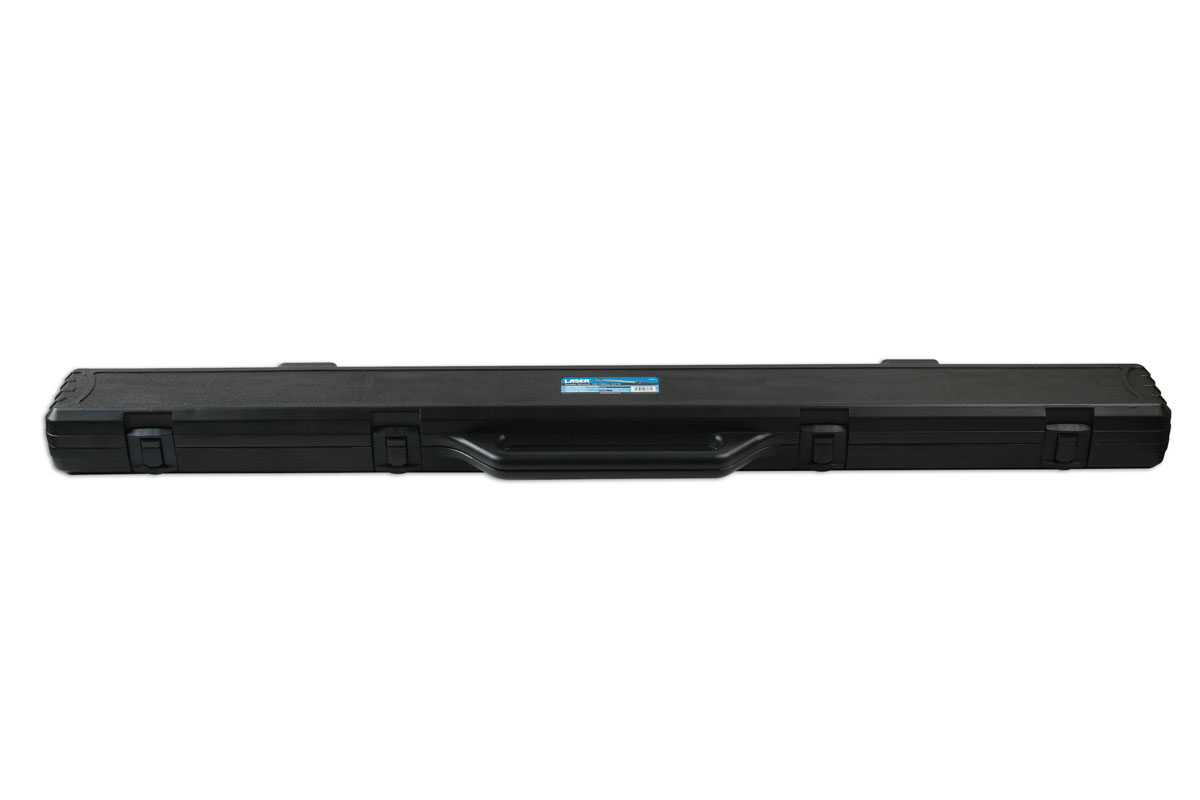

  • Manufactured and certificated to ISO6789-1 : 2017. Supplied in moulded case for storage.
  • All Laser torque wrenches (mechanical & digital) are supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017
TSP: £983.06 ex VAT £1179.67 inc VAT

Drehmomentschlüssel 3/4"-Antrieb, 150-750 Nm

  • Bereich 150<750 Nm
  • 3/4"-Antrieb x 1150 mm lang
  • Vergrößertes Fenster für Drehmomenteinstellung
  • Einfacher Arretiermechanismus
  • Lieferung mit Kalibriernachweis
TSP: £983.06 ex VAT £1179.67 inc VAT

Clé dynamométrique à entraînement de 3/4" 150-750 N.m

  • Plage 150<750 N.m (110<553 ft-lb)
  • Entraînement de 3/4" x 1 150 mm de longueur
  • Fenêtre grossissante pour réglage du couple
  • Mécanisme à blocage facile
  • Fournie avec un certificat d'étalonnage
TSP: £983.06 ex VAT £1179.67 inc VAT
3/4" Drive Calibration Certificate
 Buy Locally

Press Release
New Torque Wrench range designed for higher torque settings.

If a nut or bolt is not tightened sufficiently it will eventually work loose and may even drop off resulting in damage or a dangerous situation. Conversely, if the nut or bolt is tightened too much, it may either strip its thread, snap, or stretch the stud being fastened. A torque wrench is specifically designed to avoid both of these situations — it produces the correct amount of tension in the bolt necessary to hold the parts together without the danger of distorting the bolt, nut or the parts they are holding together.

For higher ranges of torque settings, the torque wrenches used have to be strong and robust, as well as being accurate. This new range of torque wrenches from Laser Tools fits the bill, and are very well suited to heavy workshop use in both commercial vehicle and motor racing applications. There are four torque wrenches in the range: 1/2"-drive x 595mm length (part no: 7169), 3/4"-drive x 970mm length (part no: 7170), 3/4"-drive x 1150 length (part no: 7171) and 1"-drive x 1250mm length (part no: 7172).

The wrenches are dual scale, with a separate easy to read unit graduation and feature a locking ring to maintain the setting. They are all supplied with a calibration certificate. The torque range for each wrench:
7169: 1/2"-drive: 60 - 300Nm (44 – 221lb/ft)
7170: 3/4"-drive: 110 - 550Nm (81 – 405lb/ft)
7171: 3/4"-drive: 150 - 750Nm (110 – 553lb/ft)
7172: 1"-drive: 200 - 1000Nm (147 – 737lb/ft) — as used by Laser Tools Racing in the BTCC, for the centre wheel-retaining nuts on Aiden Moffat’s Mercedes-Benz A-Class, which are torqued to 750Nm.

Professional tools for the professional technicians that need higher-rated torque wrenches — available now from your Laser Tools stockist.
