9200 Engine Timing Kit - for JLR 1.5 Petrol

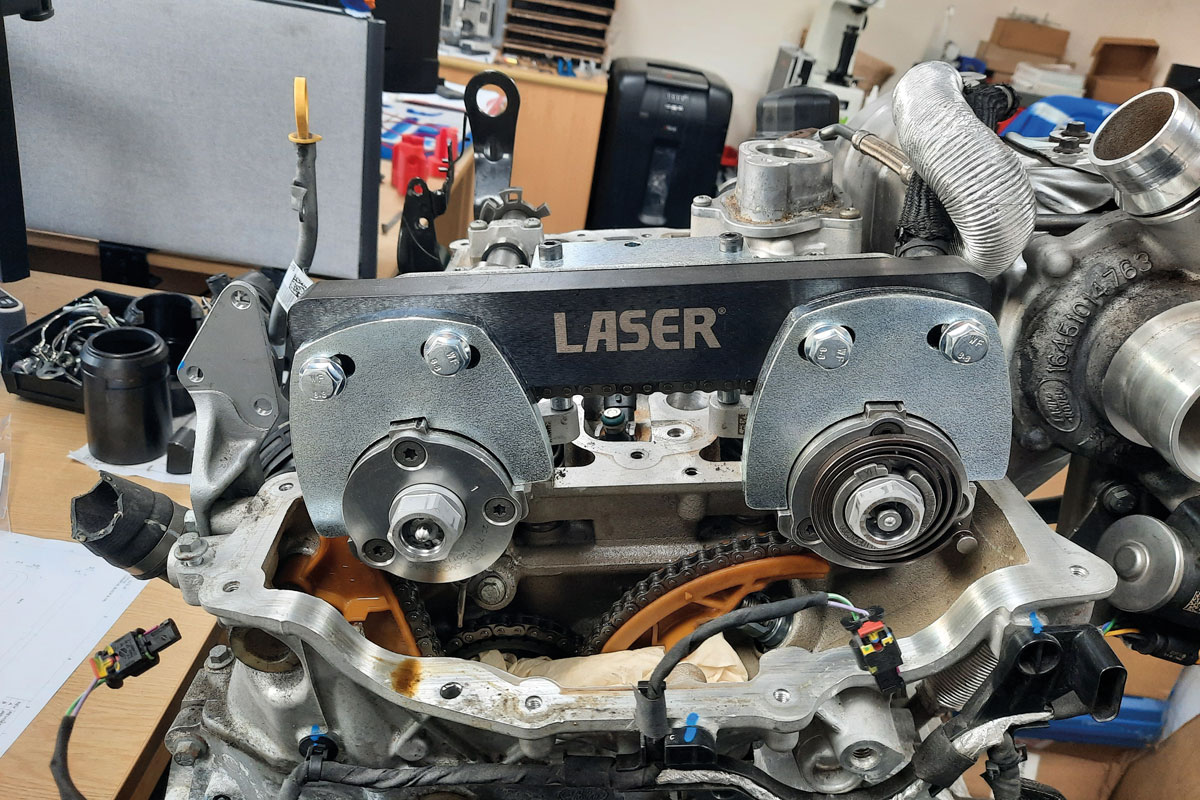

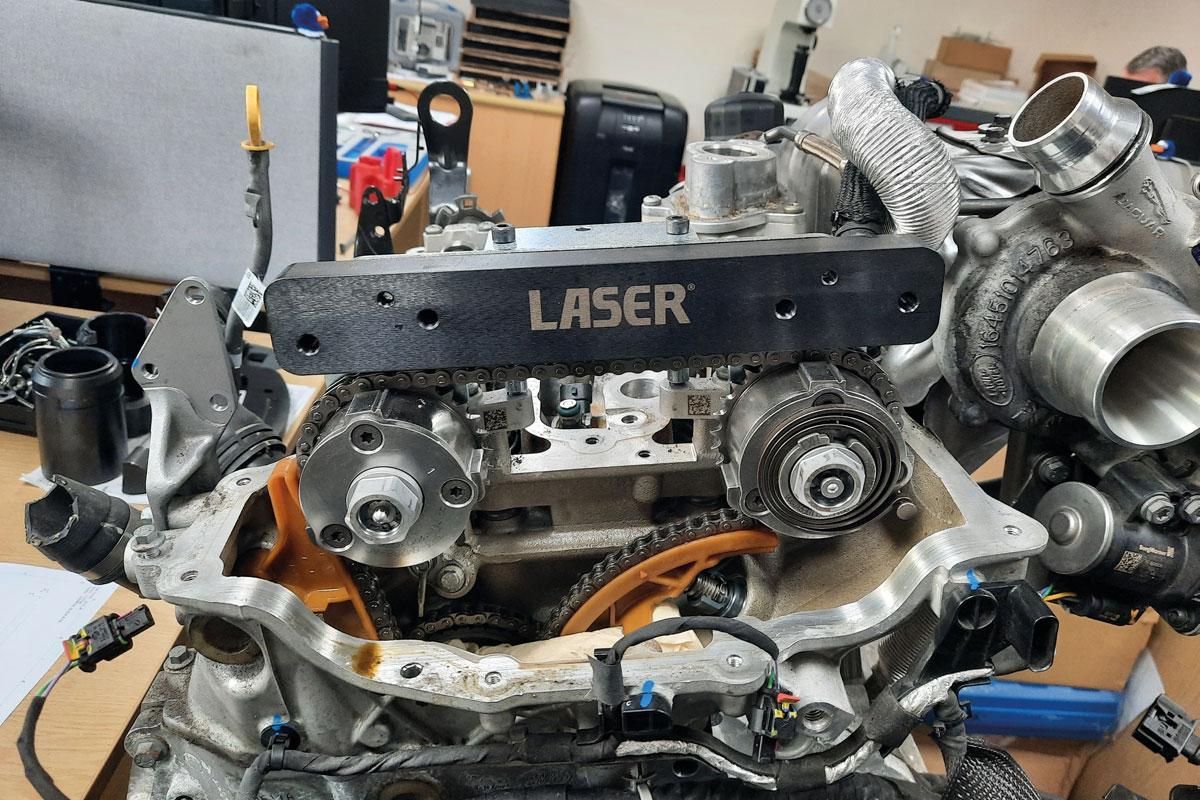

The Laser 9200 timing tool kit has been specially developed to allow the 1.5L petrol engines found in Jaguar Land Rover (JLR) vehicles from 2020 onwards to be locked in their timed position during timing chain replacement or timing checks.
- Applications include: Jaguar E-Pace (from 2020), Land Rover, Range Rover Evoque (from 2020).
- Engine applications include: 1.5L, AJ21 & PT153.
- Kit includes: cam & crankshaft holding & locking tools.
- Equivalent to OEM: JLR-303-1630, JLR-303-1654, JLR-303-1655, JLR-303-1656 & JLR-303-1686.
- For 2.0L AJ200 applications please see Laser Part No. 7430 (Diesel) & 8507 (Petrol). For AJ20D6 3.0L see Laser 9131 (Diesel). UK Registered Design. Made in Sheffield.
List Price: £532.00 ex VAT £638.40 inc VAT
Der Laser 9200 Motoreinstellwerkzeugsatz wurde speziell entwickelt, um die 1,5-l-Benzinmotoren ab Baujahr 2020 von Jaguar Land Rover- (JLR)-Fahrzeugen beim Wechsel der Steuerkette oder bei der Überprüfung der Steuerzeiten in ihrer Position zu arretieren.
- Einsatzmöglichkeiten u. a.: Jaguar E-Pace (ab 2020), Land Rover, Range Rover Evoque (ab 2020).
- Einsatzmöglichkeiten für Motoren u. a.: 1,5 l, AJ21 und PT153.
- Der Satz enthält: Nocken- und Kurbelwellen-Halte- und Arretierwerkzeuge.
- Entspricht OEM: JLR-303-1656, JLR-303-1630, JLR-303-1655 und JLR-303-1654.
- Für 2,0-l-AJ200-Anwendungen siehe Laser Teile-Nr. 7430 (Diesel) und 8507 (Benziner). Für AJ20D6 3,0 l siehe Laser 9131 (Diesel). Hergestellt in Sheffield.
List Price: £532.00 ex VAT £638.40 inc VAT
Le kit d'outils de calage Laser 9200 a été spécialement développé pour permettre le blocage des moteurs essence 1,5 L des véhicules Jaguar Land Rover (JLR) (à partir de 2020) dans leur position de calage lors du remplacement de la chaîne de distribution ou des contrôles du calage.
- Les applications comprennent : Jaguar E-Pace (à partir de 2020), Land Rover, Range Rover Evoque (à partir de 2020).
- Les applications moteurs comprennent : 1,5 L, AJ21 et PT153.
- Le kit comprend : outils de maintien et blocage de cames et de vilebrequin.
- Équivalent des OEM : JLR-303-1656, JLR-303-1630, JLR-303-1655 et JLR-303-1654.
- Pour les applications 2,0 L AJ200, voir les références Laser 7430 (diesel) et 8507 (essence). Pour les applications 3,0 L AJ20D6, voir la référence Laser 9131 (Diesel). Fabriqué à Sheffield.
List Price: £532.00 ex VAT £638.40 inc VAT
Applications
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| Jaguar | E-Pace | P160, P300e, MHEV | (X540) | 2020 - on |
1,5 Petrol
AJ21 PT153 |
| Manufacturer | Model | Range | Year | Engine Codes | |
|---|---|---|---|---|---|
| Land Rover | Range Rover Evoque | P160, P300e, MHEV, PHEV | (L551) | 2020 - on |
1,5 Petrol
PT153 |

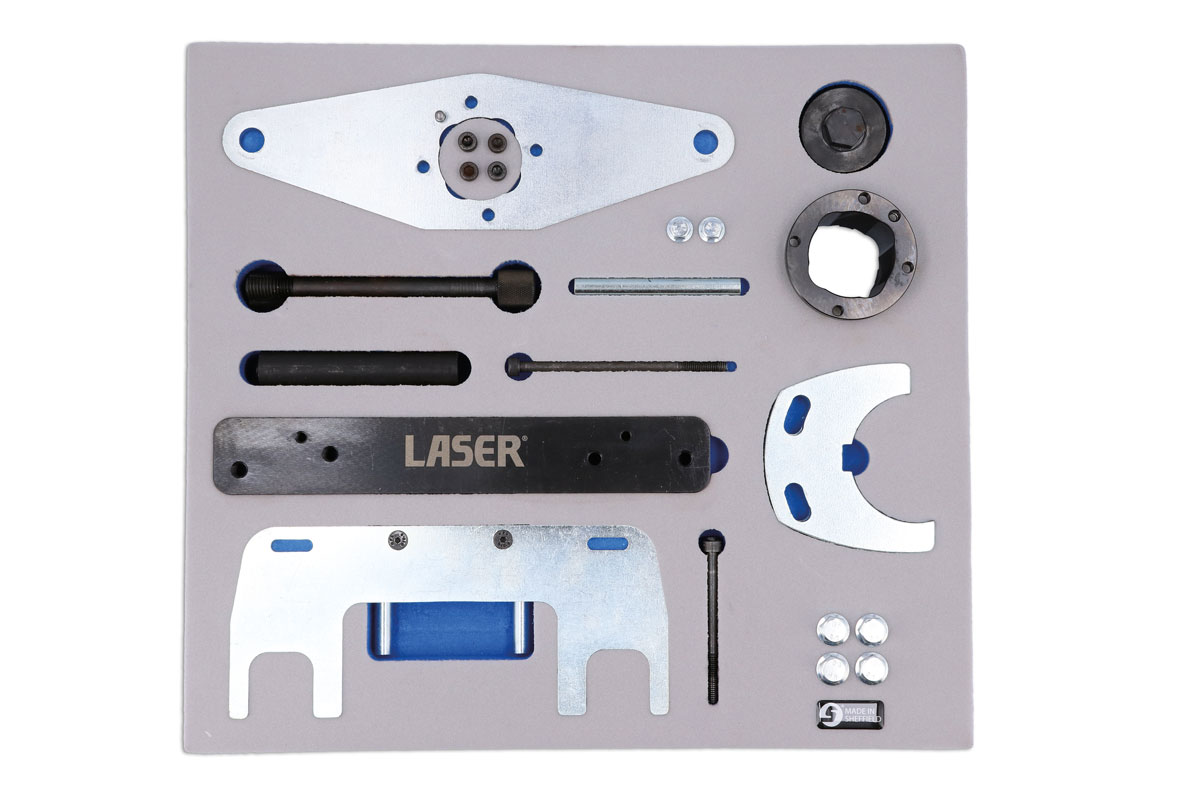

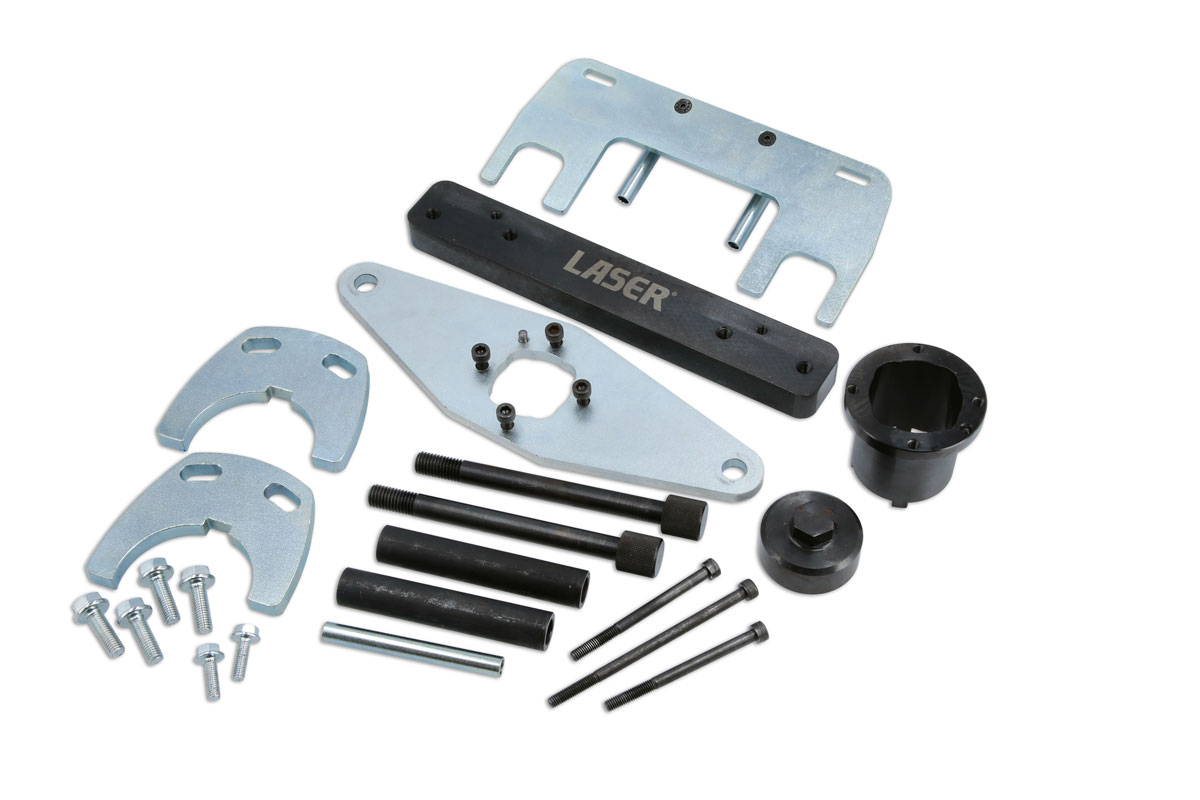

Set Contents
| Component | Description | OEM Toolcodes |
|---|---|---|

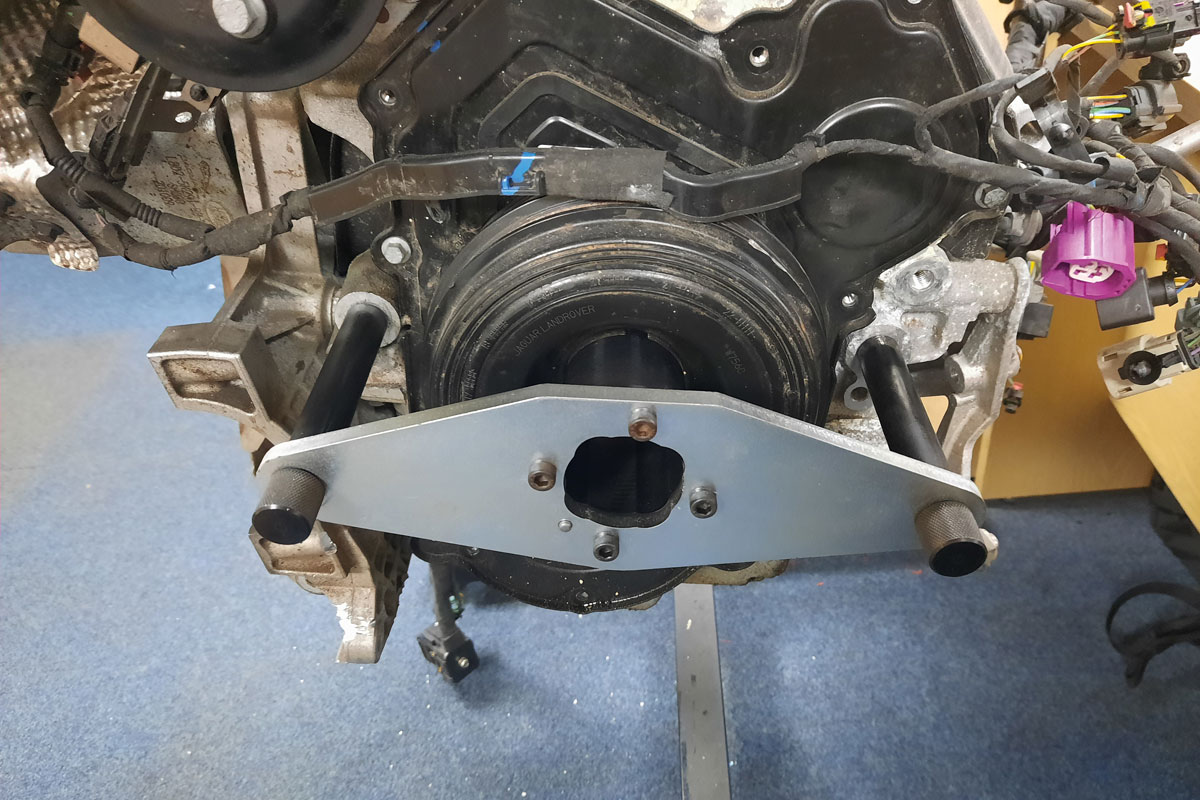

| C1100 | Crankshaft Pulley Turning Tool |
JLR-303-1656
|

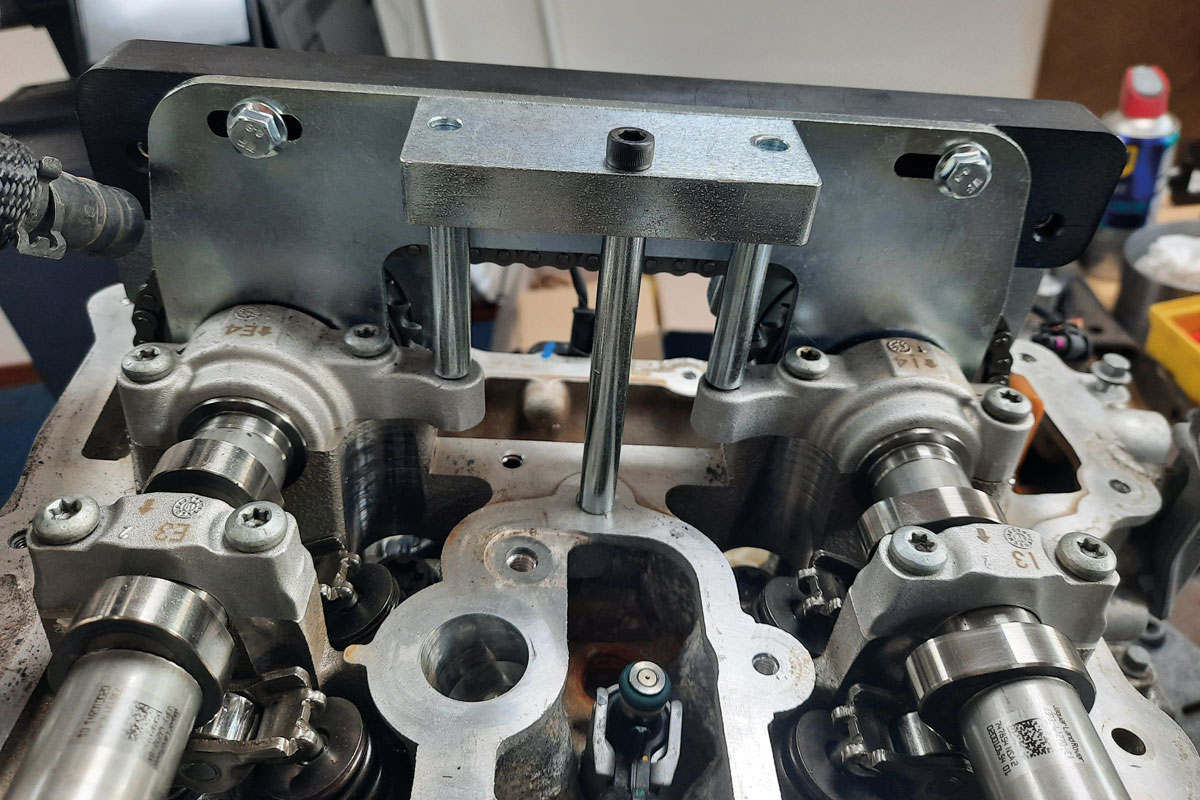

| C1101 | Camshaft Locking Tool |
JLR-303-1655
|
| C1102 | Camshaft Adjuster Locking Tool |
JLR-303-1655
|
| C1103 | Clamp Screw and Spacer Spares Kit |
JLR-303-1686
|
| C895 | Crankshaft Pulley Locking Tool |
303-1630
JLR-303-1630
|
Related Products
Press Release

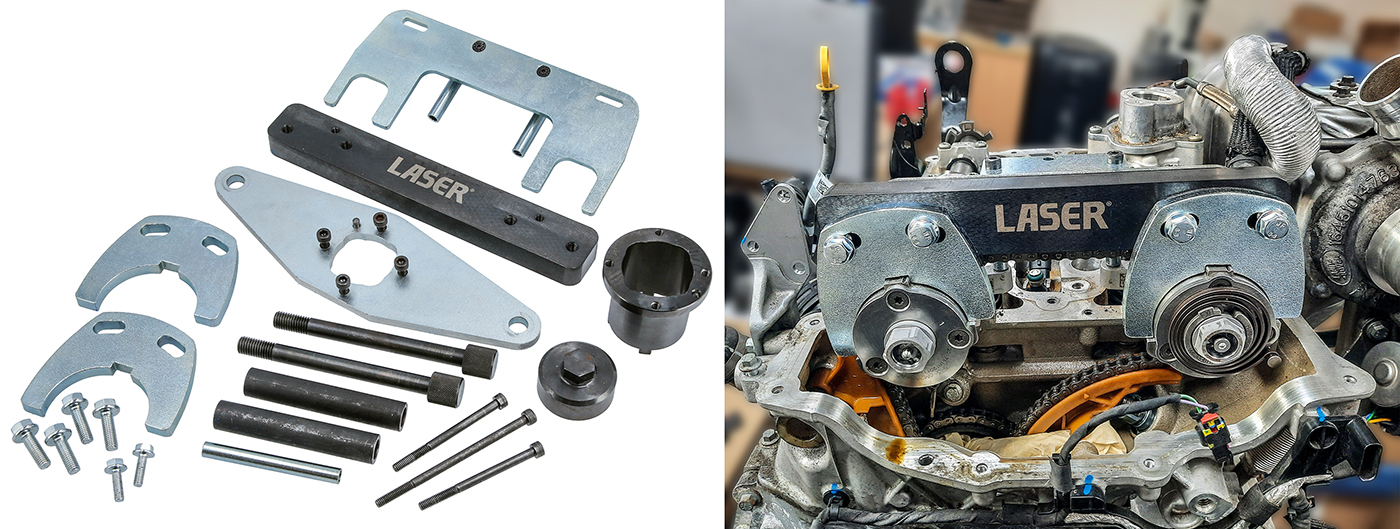

Precision locking for JLR 1.5 engines — Laser 9200 Timing Kit
Laser Tools is excited to introduce their Engine Timing Kit (part number 9200), engineered to lock and support Jaguar Land Rover’s 1.5L petrol engines (AJ21 / PT153) in the correct timed position for chain replacement and timing checks. This kit gives technicians the accurate, repeatable location control they need when working on the latest JLR 2020-onward models such as the E-Pace and Range Rover Evoque.
Accurate engine timing is non-negotiable. Modern, high-output petrol engines use tight tolerances and complex chain systems where a small timing error can cause poor running, costly mechanical damage or even catastrophic failure. Using the correct, OEM-equivalent timing tools prevents cam and crank movement during service, speeds up the job, and protects the engine — which is why professional technicians choose Laser Tools’ timing kits: they’re designed, manufactured and rigorously tested in Sheffield to meet workshop demands.
- Applications: Jaguar E-Pace (from 2020), Land Rover & Range Rover Evoque (from 2020).
- Engine coverage: 1.5L petrol — AJ21 & PT153.
- Contents: camshaft and crankshaft holding and locking tools to precisely locate and retain timing positions.
- OEM equivalents: Equivalent to JLR-303-1630, JLR-303-1654, JLR-303-1655, JLR-303-1656 & JLR-303-1686.
- UK Registered Design: Made and tested in Sheffield, UK.
For related JLR engines see Laser part numbers 7430 (AJ200 2.0L diesel), 8507 (AJ200 2.0L petrol) and 9131 (AJ20D6 3.0L diesel). Available now for purchase from your Laser Tools stockist and online retailers.
