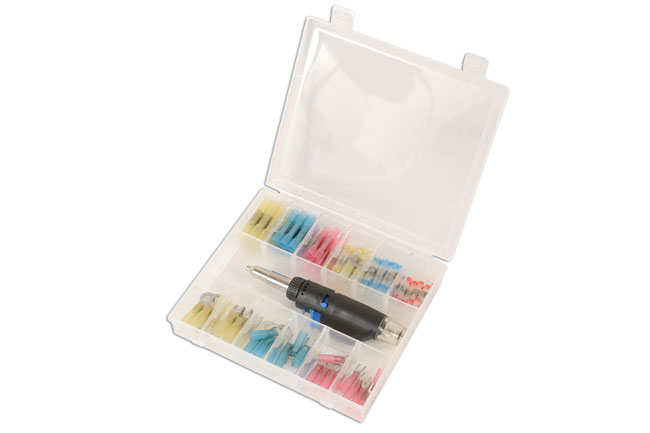

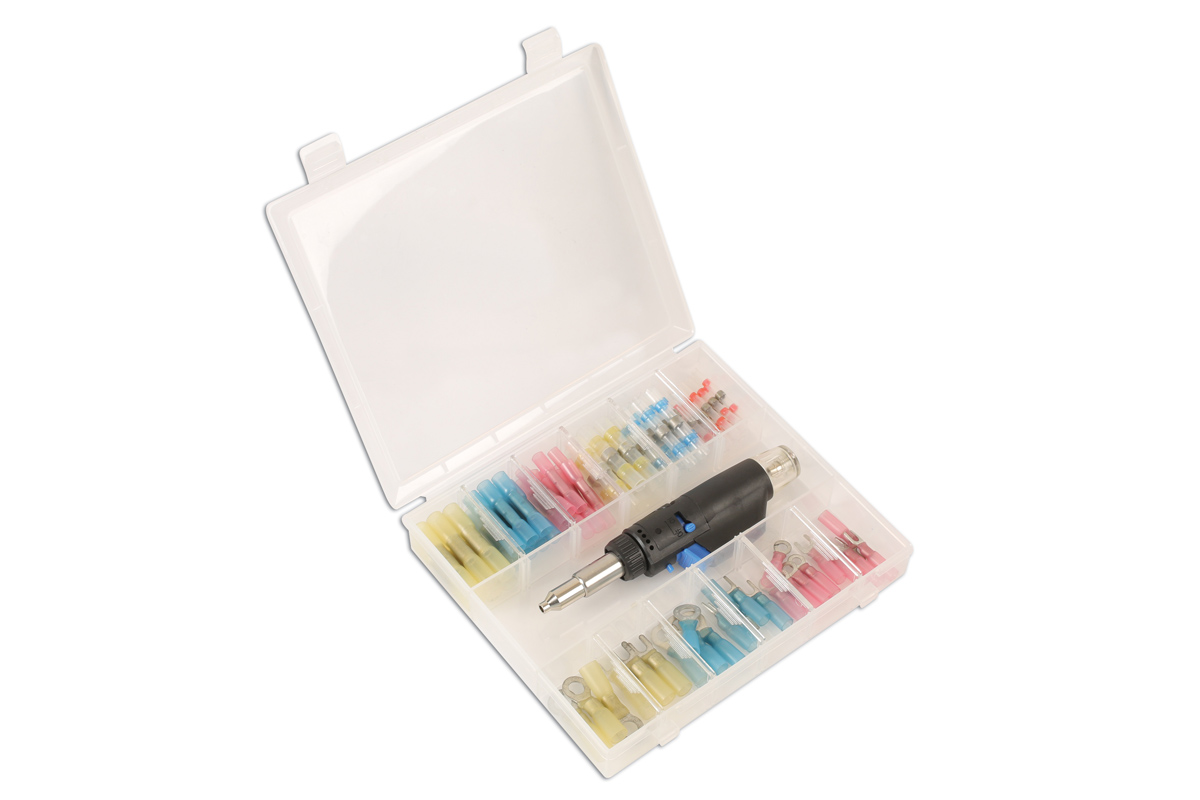

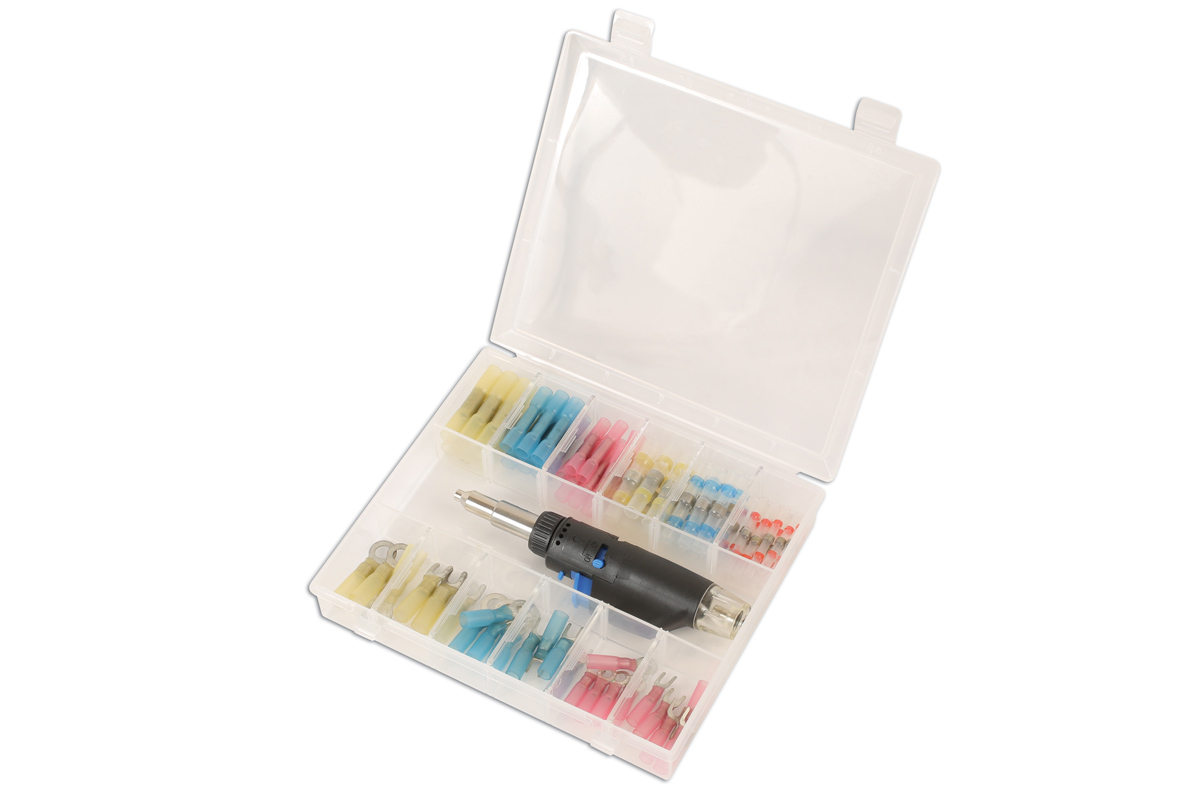

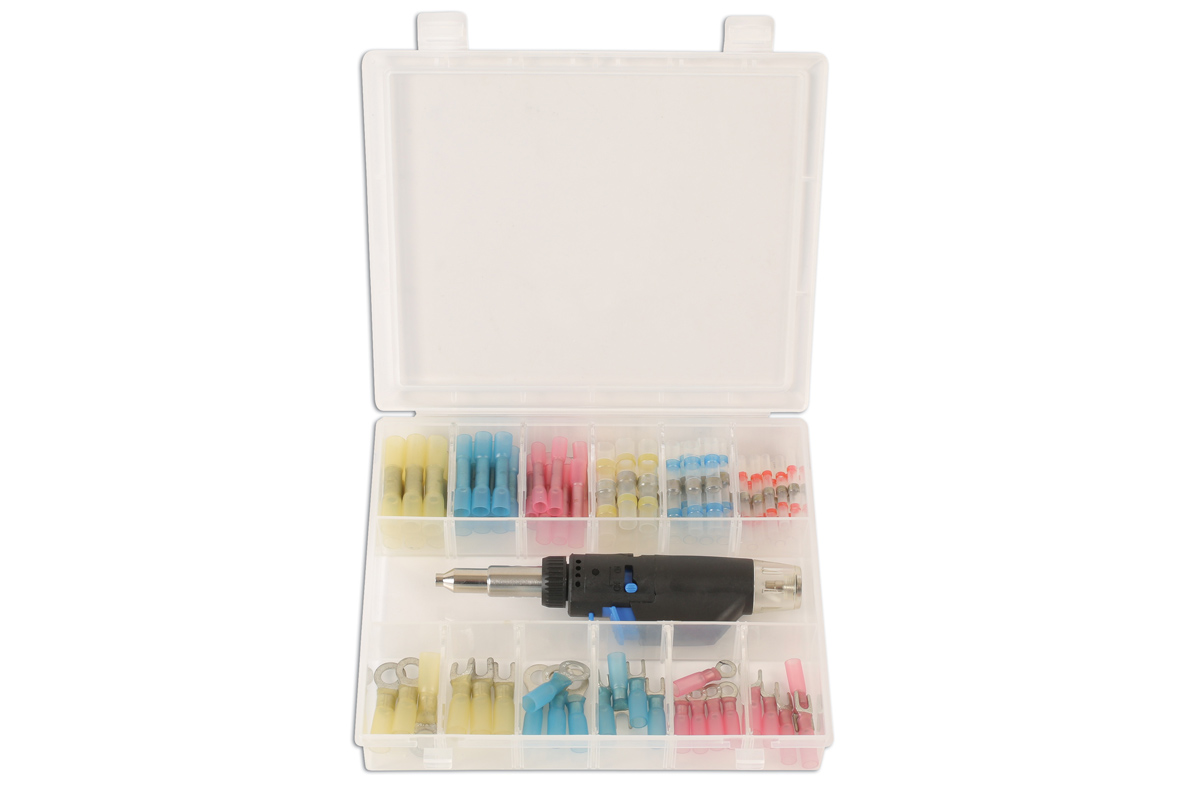

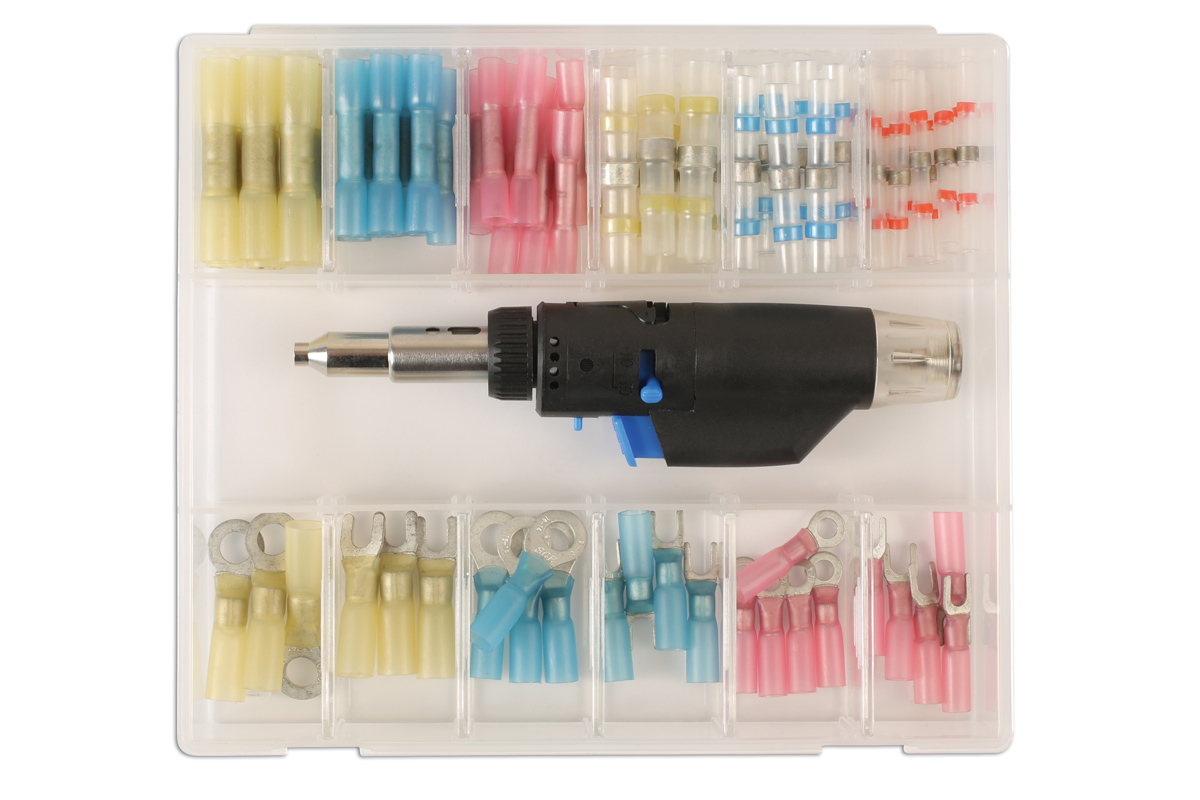

6616 Gas Solder Kit 73pc
An essential solder kit complete with gas torch, sleeves, wire splices, fork and ring terminals
- Kit includes a Butane gas heat torch.
- Content: Solder sleeve wire splices 10 x AWG 22 - 18 (Red); 8 x AWG 16 - 14 (Blue); 6 x AWG 12 - 10 (Yellow).
- Heat shrinkable butt splice connectors: 10 x AWG 22 - 18 (Red); 8 x AWG 16 - 14 (Blue); 6 x AWG 12 - 10 (Yellow).
- Heat shrink ring terminals, size 4.3mm: 5 x red, 4 x blue, 3 x yellow.
- Heat shrink fork terminals: Red 4.3 mm, Blue 4.3, Yellow 5.3mm. All consumable elements can be replaced from the Connect Consumables range - Part No. 37188.
TSP: £83.88 ex VAT £100.66 inc VAT
An essential solder kit complete with gas torch, sleeves, wire splices, fork and ring terminals
- Kit umfasst einen mit Butangas betriebenen Brenner
- Verbrauchsmaterial umfasst: Lötmuffe, Spleißverbinder 10x AWG 22-18 rot, 8x AWG 16-14 blau, 6x AWG12-10 gelb
- Zusätzlich: Wärmeschrumpfbare Stoßspleißverbinder – 10x AWG22-18 rot, 8x AWG16-14 blau, 6x AWG 12-10 gelb
- Außerdem: Wärmeschrumpfbare Ringkabelschuhe Größe 4,3 mm – 5x rot, 4x blau, 3x gelb
- Wärmeschrumpfbare Gabelkabelschuhe – rot 4,3 mm, blau 4,3 mm, gelb 5,3 mm. Das gesamte Verbrauchsmaterial ist über das Sortiment von Connect Consumables erhältlich.
TSP: £83.88 ex VAT £100.66 inc VAT
Useful Downloads
Press Release

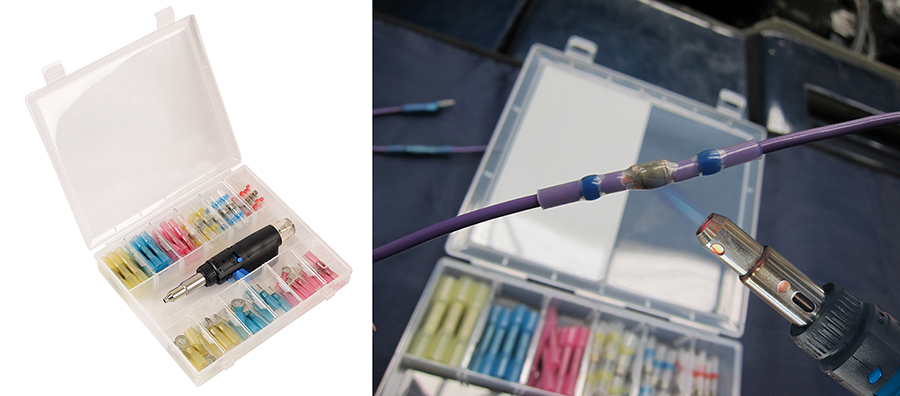

Solder and heat shrink your wiring connections in one operation
This impressive little kit from Laser Tools (part number 6616) combines a convenient butane powered heat torch with a useful (72 piece) set of connectors that includes both heat shrink crimp and heat shrink solder joiners plus a selection of heat shrink crimp fork and eye terminals.
The compact and lightweight butane heat torch quickly and cleanly produces directional hot air, particularly suited to heat shrink tubing when making repairs to automotive wiring and cabling. Piezo ignition ignites instantly and the torch is soon up to working temperature. The clear gas reservoir enables the level of liquid butane to be seen.

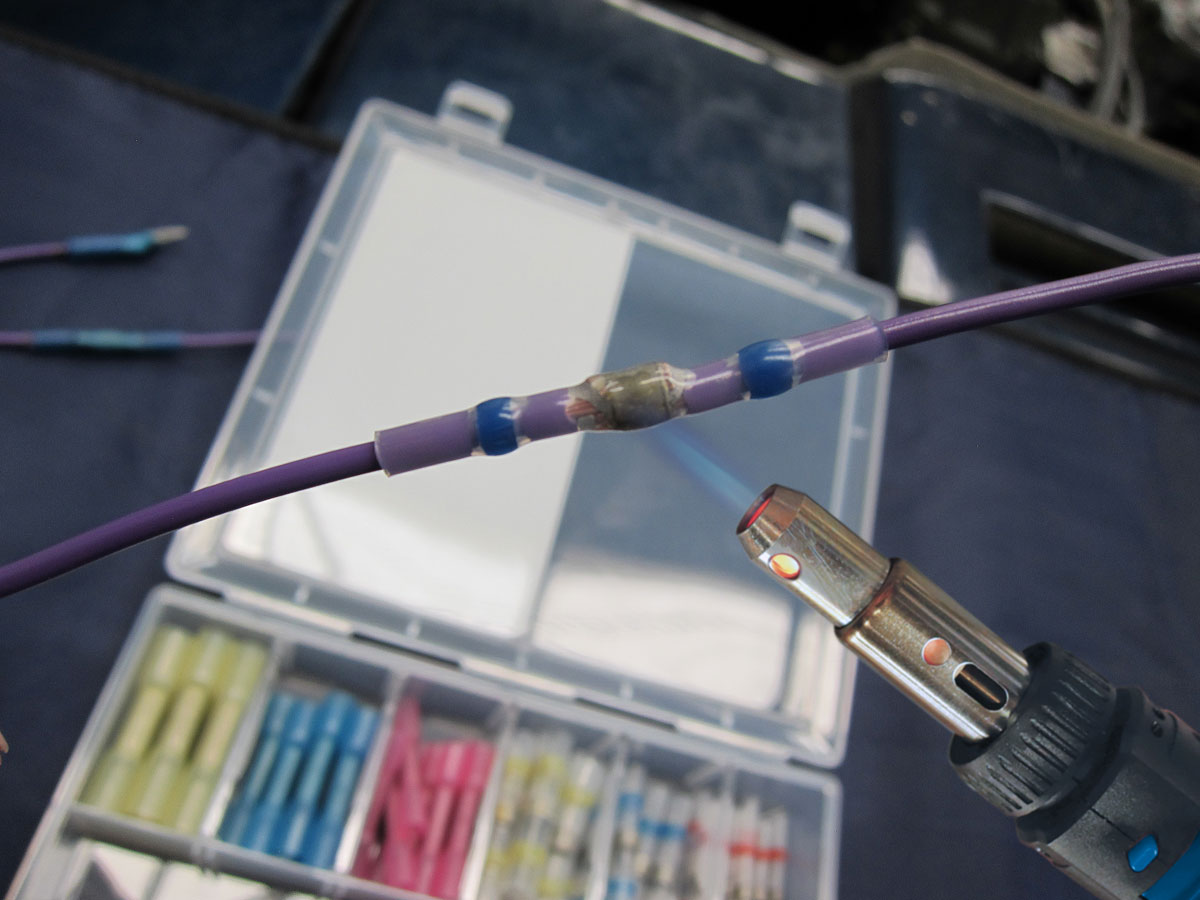

The crimp connectors are crimped in the normal manner then sealed with the heat shrink insulation, but the heat shrink solder joiners are particularly useful and convenient, having a plug of low-temperature pre-fluxed solder in the centre and sheathed with heat shrink insulation. Twist the two wires to be joined, then slide the solder joiner over the joint until the plug of solder is at the centre of the joint. Use the heat torch to shrink the insulation sheath while at the same time melting the solder around the joint; the solder is drawn into the wire strands giving a secure connection.
Makes professional joints and connections every time and particularly suitable for kit car and classic car owners. Available now from your Laser Tools stockist.
