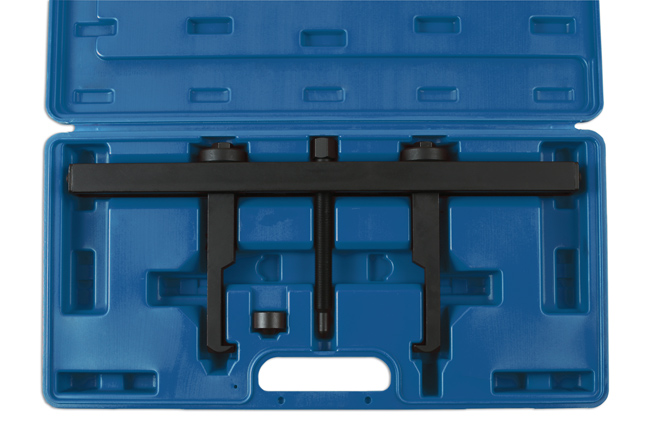

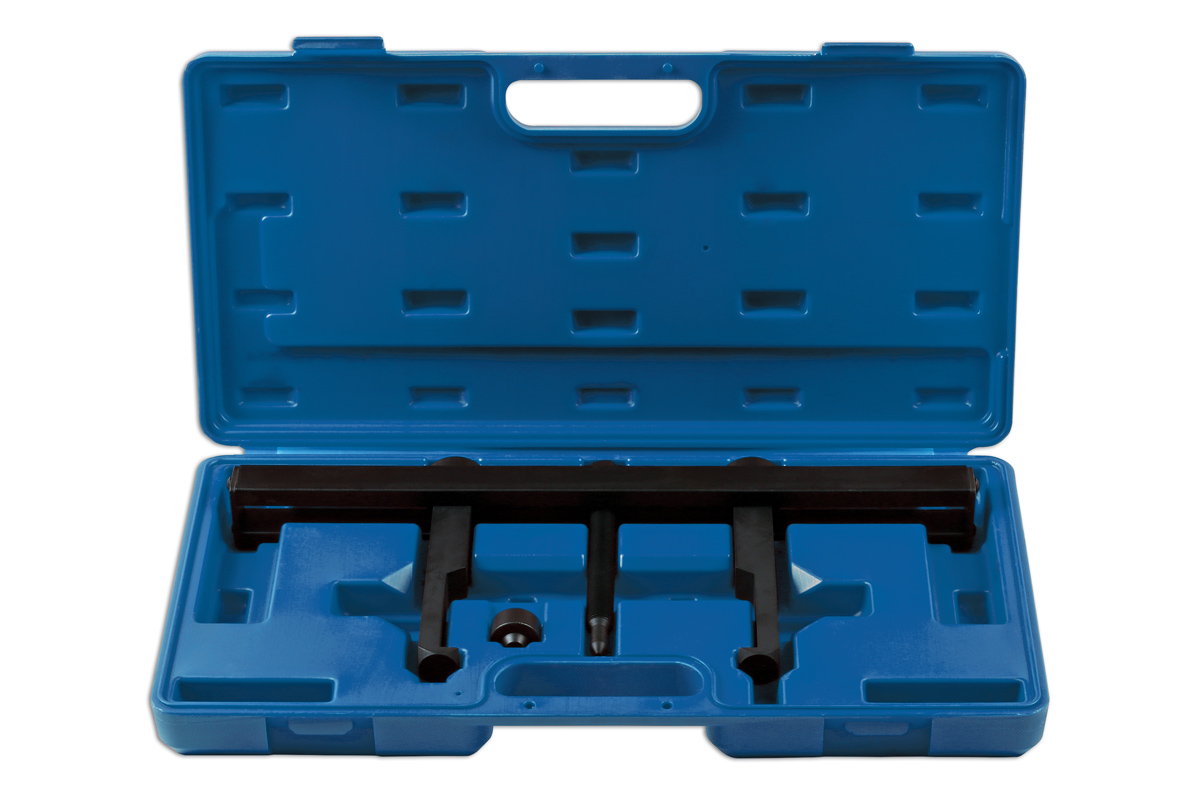

7708 Brake Disc Puller

Item(s) need Lubrication Product Video available

Designed to allow the brake discs to be pulled off the drive flange when corrosion and dirt are sticking the discs in place. Can be used to push the driveshaft out where access permits. To fit discs from 165mm to 380mm in diameter.

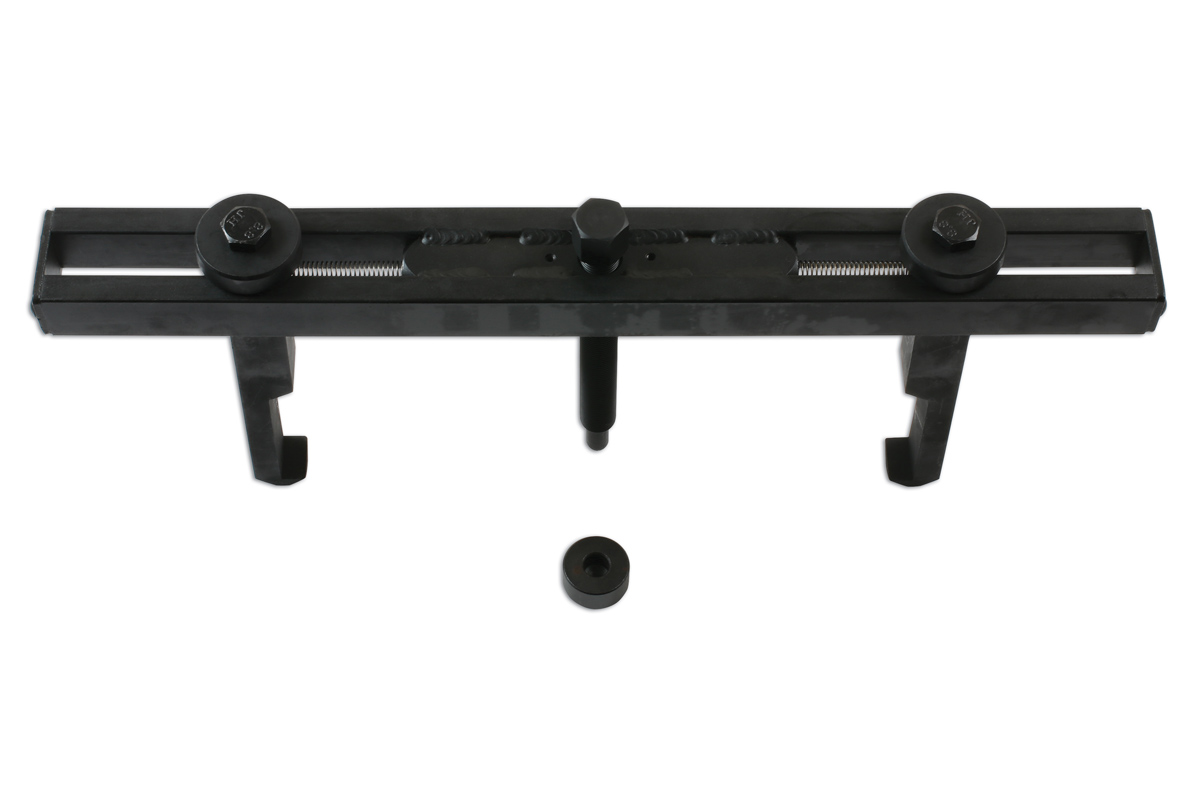

  • Brake disc puller with wide spread adjustable spring loaded legs.
  • Fits discs from 165mm to 380mm in diameter.
  • Throat depth: 120mm.
  • Supplied with a protective force screw end cap.
  • Threaded force screw - always use Molybdenum Disulphide grease.
TSP: £182.00 ex VAT £218.40 inc VAT

Designed to allow the brake discs to be pulled off the drive flange when corrosion and dirt are sticking the discs in place. Can be used to push the driveshaft out where access permits. To fit discs from 165mm to 380mm in diameter.

  • Bremsscheibenabzieher mit weit gespreizten, einstellbaren, federbelasteten Abziehbeinen.
  • Passend für Scheiben mit einem Durchmesser von 165 mm bis 380 mm.
  • Druckschraube mit Gewinde – immer mit Molybdändisulfidfett schmieren.
  • Lieferung mit Schutzkappe für die Druckschraube.
TSP: £182.00 ex VAT £218.40 inc VAT

Conçu pour permettre d'extraire les disques de frein du flasque d'entraînement lorsque la corrosion et la saleté provoquent une adhésion des disques. Peut s'utiliser pour faire sortir l'arbre d'entraînement lorsqu'il est accessible. Convient pour des disques de 165 mm à 380 mm de diamètre.

  • Extracteur de disque de frein avec branches à ressort à grande capacité de réglage.
  • Convient pour des disques de 165 mm à 380 mm de diamètre.
  • Vis de force filetée - toujours utiliser de la graisse au bisulfure de molybdène.
  • Livré avec cache de protection de la vis de force.
TSP: £182.00 ex VAT £218.40 inc VAT

Remschijftrekker

  • Remschijftrekker met breed gespreid verstelbare, veerbelaste poten.
  • Geschikt voor schijven met een diameter van 165 mm tot 380 mm.
  • Krachtschroef met draad - gebruik altijd Molybdeen Disulfide-vet.
  • Geleverd met een beschermend kracht-schroefdopje.
  • Gereedschapsmaat: 120mm x 45mm.
TSP: £182.00 ex VAT £218.40 inc VAT
Item(s) need Lubrication Product Video available
 Buy Locally

Useful Downloads
Press Release

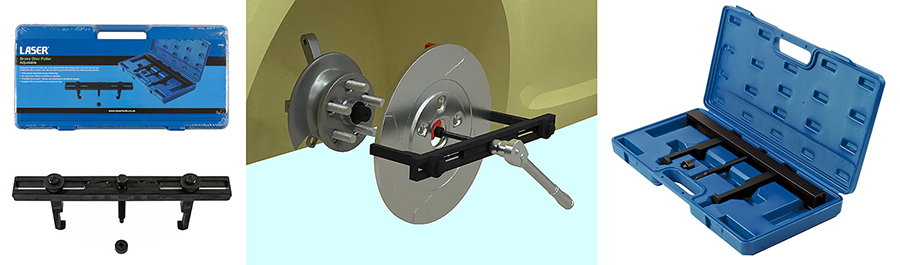

Brake disc corroded onto the hub and won’t budge? Reach for this new brake disc puller, available now.

Attempting to remove a brake disc? You’ve removed the securing screw but the disc doesn’t want to come off. You’ve hit the disc with a soft hammer but it still won’t budge. Dirt and corrosion are holding it firmly in place. Reach for this new brake disc puller from Laser Tools (part number 7708).

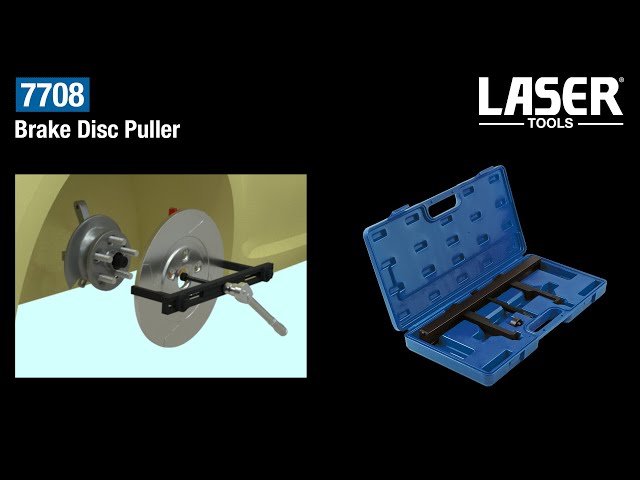

The puller is designed to fit discs from 165mm to 380mm in diameter, with its easily adjustable, spring-loaded legs that clip behind the disc. The disc can then steady be pulled off the axle flange by breaking the corrosion’s grip.

The tool is supplied with a protective force screw end cap which means the force screw is not bearing directly onto the drive shaft or hub. If access permits, the tool can also be used to push out the driveshaft.

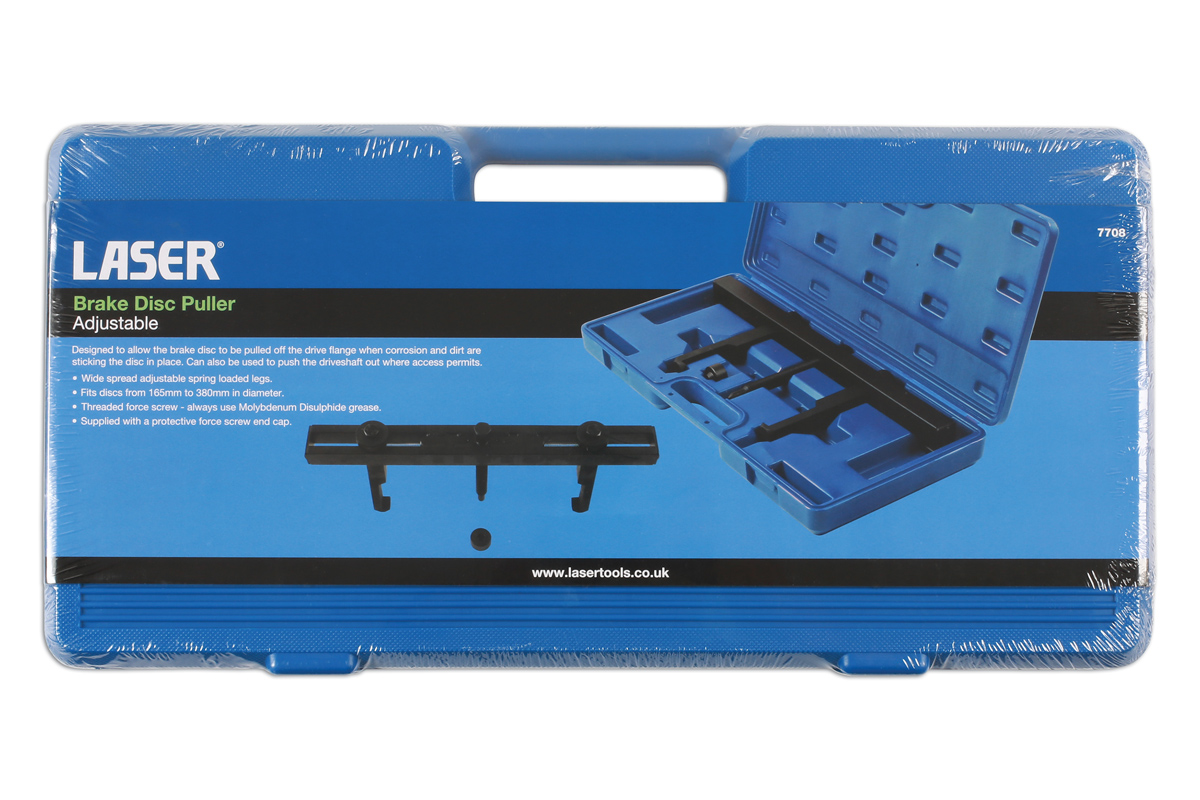

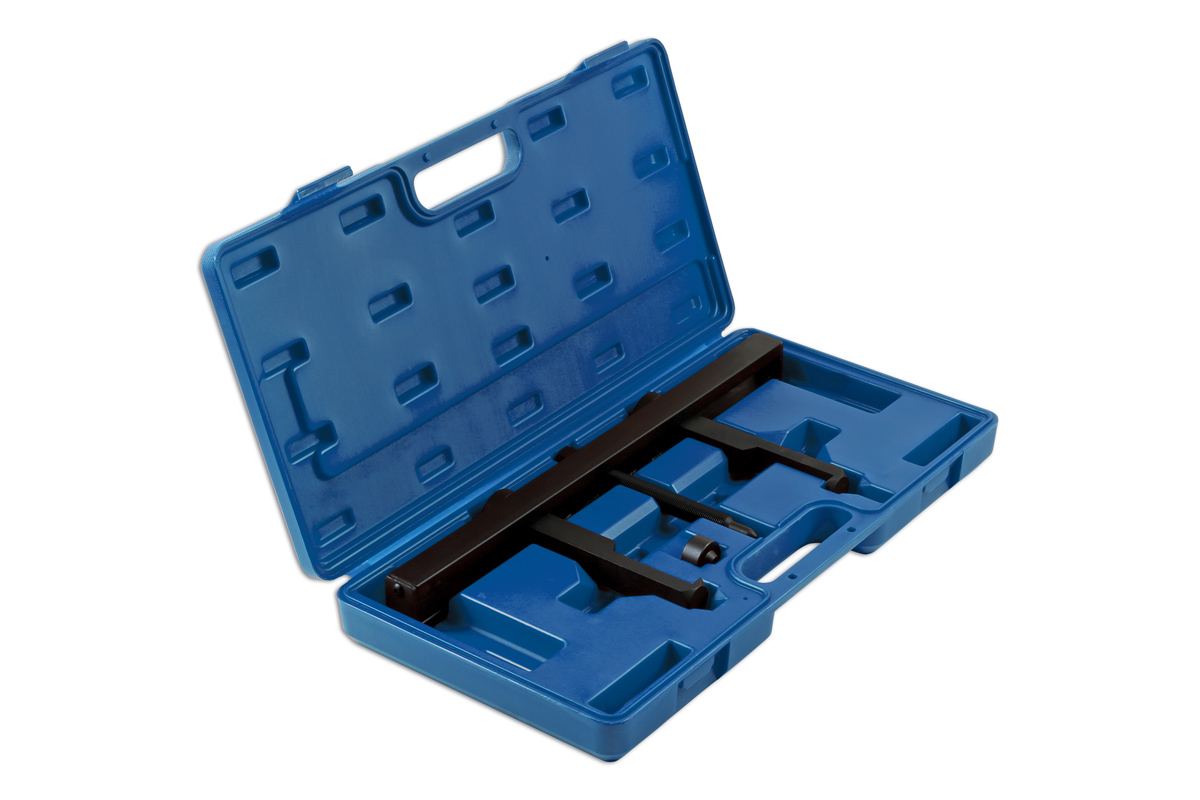

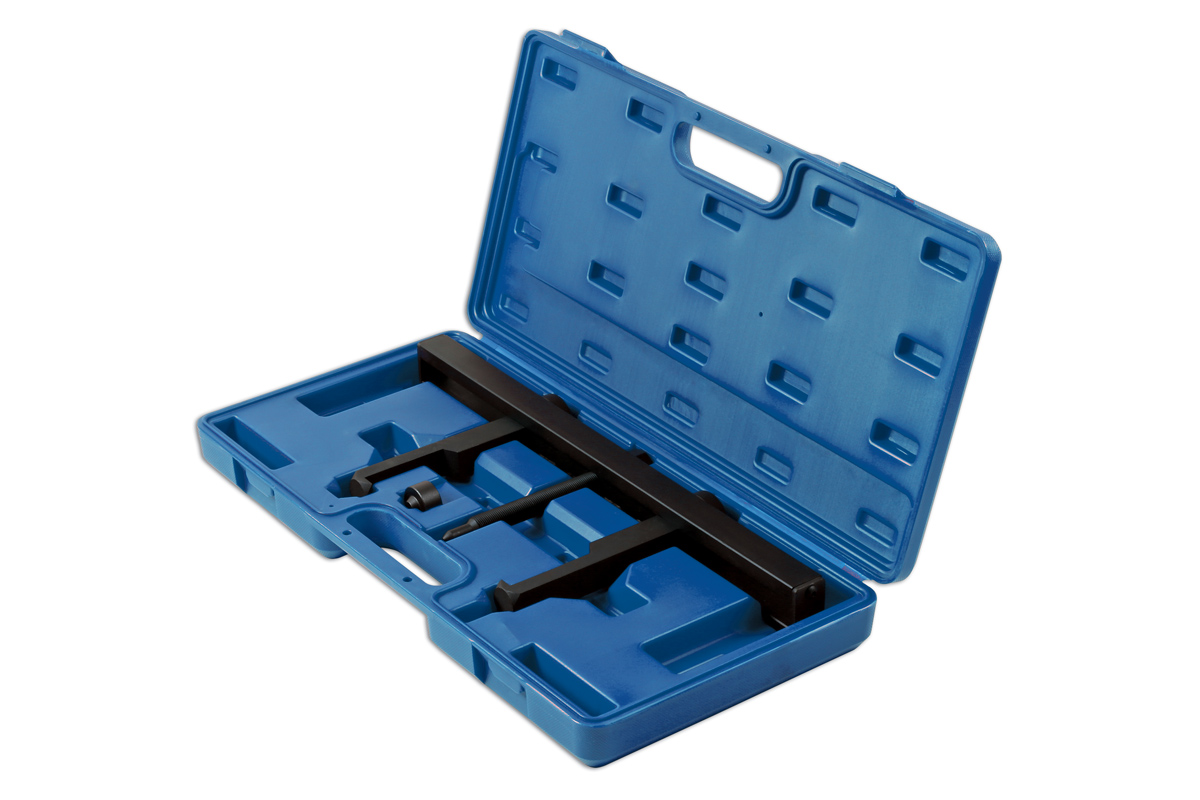

A sturdy and robust tool that is designed for years of use. It’s supplied in a shallow blow-mould case that fits neatly in the tool chest drawer.

It is available now from your Laser Tools stockist.
