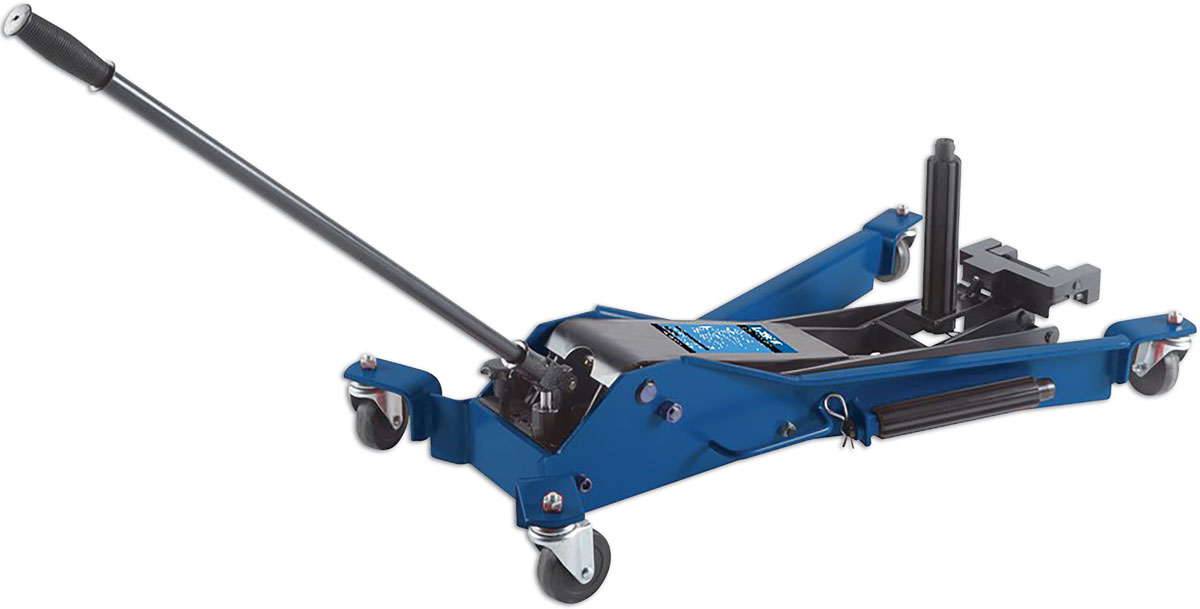

7249 Clutch and Flywheel Jack 136kg - HGV

CE Approved UK Conformity Assessed Spline Profile

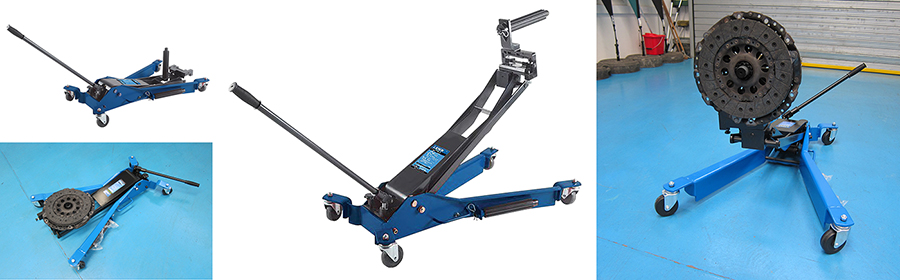

Clutch jack for flywheel removal and installation, designed to remove, install and transport (in the lowered position) 14" and 15½" double-disc clutches and/or flywheel assemblies as fitted to HGV vehicles.

  • The low profile of the jack,assembled clutch and four smooth-action castors make it easy to move into position under the vehicle.
  • Capacity 136kgs (300lbs); min. height: 288mm; max. height: 980mm; weight: 60kgs.
  • Tilt saddle enables the clutch to be positioned horizontally or vertically.
  • 360° rotating pump handle for precise alignment; 4 swivel castors for easy of use.
  • Includes 2" and 1 3/4" splines, used as dummy output shafts to align the clutch and flywheel assemblies prior to installation on the vehicle. CE and UKCA compliant.
TSP: £1182.38 ex VAT £1418.86 inc VAT

Kupplungsheber zum Aus- und Einbau von Schwungscheiben für Lkw

  • Einsatzmöglichkeiten: Aus- und Einbau von Kupplung und Schwungscheibe
  • Kapazität 136 kg, Min.-Höhe 288 mm, Max.-Höhe 980 mm, Gewicht 60 kg
  • Der Neigungssattel ermöglicht die Positionierung der Kupplung horizontal oder vertikal
  • Um 360 Grad drehbarer Pumpengriff für präzise Ausrichtung, 4 Lenkrollen für einfache Handhabung
  • Umfasst 2"- und 1 3/4"-Keilwellen
TSP: £1182.38 ex VAT £1418.86 inc VAT

Vérin d'embrayage pour dépose et installation de volant-moteur de camion

  • Applications : Dépose et d'installation d'embrayage et de volant-moteur
  • Capacité 136 kg (300 lbs), hauteur min. 288 mm, hauteur max. 980 mm, poids 60 kg
  • Le support pivotant permet de placer l'embrayage en position horizontale ou verticale
  • Poignée de pompe rotative sur 360 degrés pour un alignement précis, 4 roulettes pivotantes pour la facilité d'utilisation
  • Comporte des arbres cannelés de 2" et 1 3/4"
TSP: £1182.38 ex VAT £1418.86 inc VAT

Krik voor koppeling en vliegwiel, 136 kg

  • De krik voor de koppeling en het vliegwiel is ontworpen voor het verwijderen, aanbrengen en vervoeren (in de lage stand) van 14" en 15½" koppelingen met dubbele schijf en/of vliegwielen zoals gemonteerd op vrachtwagens.
  • Dankzij het lage profiel van de krik, de gemonteerde koppeling en de vier soepel werkende wielen kan de krik gemakkelijk onder het voertuig worden geplaatst.
  • Draagvermogen 136kg (300lbs); min. hoogte: 288 mm; max. hoogte: 980 mm, gewicht: 60 kg.
  • Met het kantelbare zadel kan de koppeling horizontaal of verticaal worden geplaatst.
  • 360° draaibare pomphendel voor precieze uitlijning; 4 zwenkwielen voor gebruiksgemak.
TSP: £1182.38 ex VAT £1418.86 inc VAT
CE Approved UK Conformity Assessed Spline Profile
 Buy Locally

Press Release
Remove and refit heavy HGV clutch and flywheel assemblies with ease, with this clutch & flywheel hydraulic jack

New to the Laser Tools’ HGV range is this clutch & flywheel jack (part number 7249), designed to remove, install and transport (in the lowered position) 14" and 15½" double-disc clutches and/or flywheel assemblies as fitted to HGV vehicles. Designed to be used when both removing and replacing these very heavy HGV clutch assemblies.

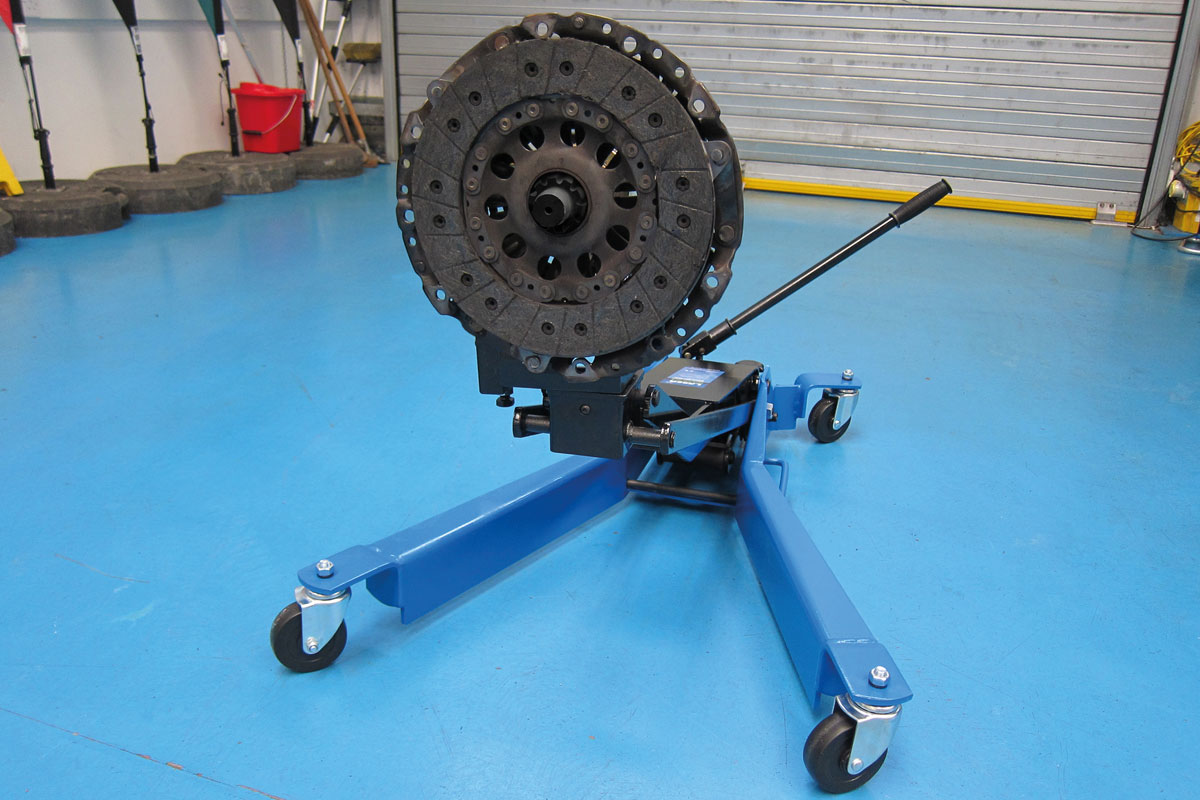

When refitting, the clutch/flywheel assembly is built up onto the splined shaft and support saddle; the low profile of the jack and assembled clutch and the four smooth-action castors make it easy to move into position under the vehicle. The whole saddle/clutch/flywheel assembly is then rotated through 90° and then jacked up into position for fitting. The smooth hydraulic mechanism makes this a very easy job and once at the correct height, the support saddle is fully adjustable to ensure that the clutch assembly lines up straight onto the engine. Two sizes of splined shaft are provided.

A terrific timesaver in the commercial vehicle workshop, you’ll wonder how you did without it. A professional tool and available now from your Laser Tools stockist.
